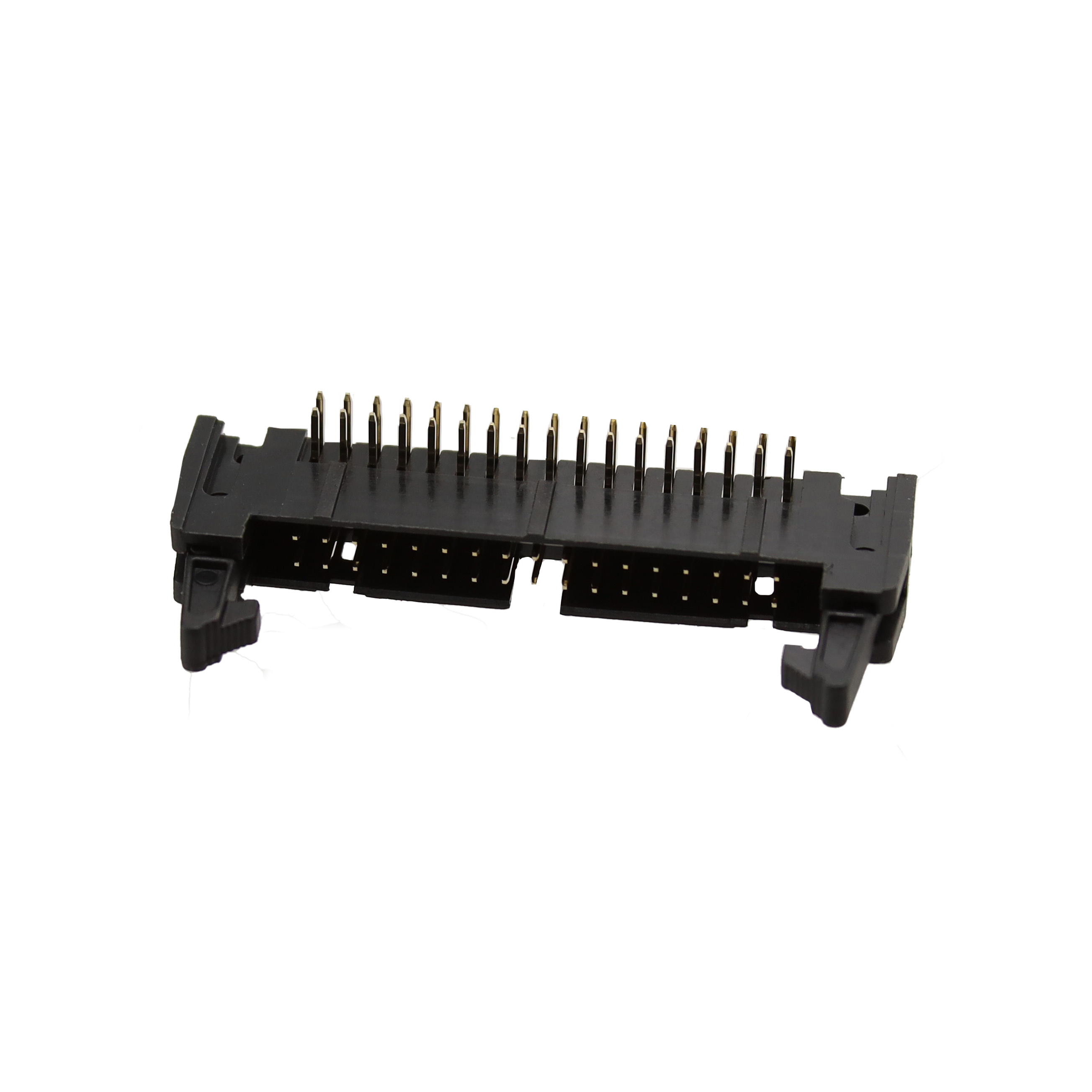

MHR-34-HUAL

Active

Adam Tech

CONN HEADER R/A 34POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 34POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	MHR-34-HUAL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Connector Type	Shrouding	Number of Positions Loaded	Fastening Type	Termination	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish - Post	Current Rating (Amps)	Insulation Color	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Number of Positions	Voltage Rating
Adam Tech MHR-34-HUAL	Header	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Long	Solder	Brass	Flash	Flash	Board to Cable/Wire	Keying Slot	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	Square	8.4 mm	0.331 in	Gold	Gold	3 A	Black	UL94 V-0	3.6 mm	0.142 in	Male Pin	2	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	34	250 VAC
Adam Tech MHR-34-HUAS	Header	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Short	Solder	Brass	Flash	Flash	Board to Cable/Wire	Keying Slot	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	Square	8.4 mm	0.331 in	Gold	Gold	3 A	Black	UL94 V-0	4 mm	0.157 in	Male Pin	2	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	34	250 VAC
Adam Tech MHR-34-VUAL	Header	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Long	Solder	Brass	Flash	Flash	Board to Cable/Wire	Keying Slot	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	Square	8.4 mm	0.331 in	Gold	Gold	3 A	Black	UL94 V-0	3.6 mm	0.142 in	Male Pin	2	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	34	250 VAC
