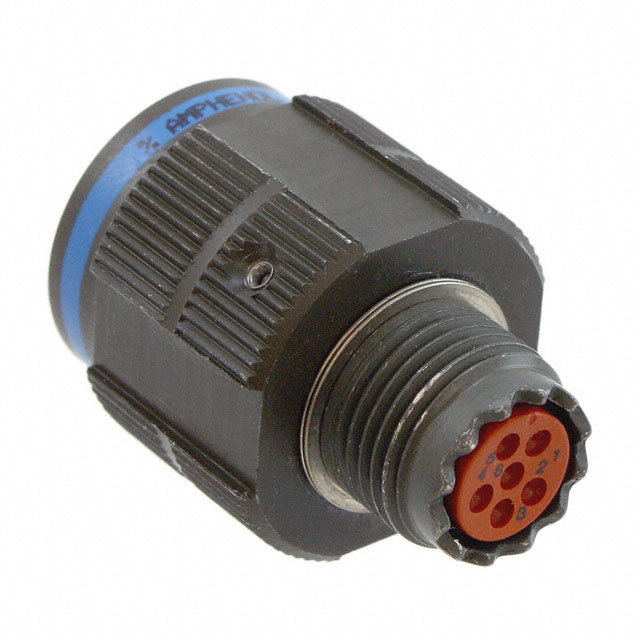

D38999/26WA35SNLC

Active

Amphenol Aerospace Operations

CONN PLUG HSG FMALE 6POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WA35SNLC

Active

Amphenol Aerospace Operations

CONN PLUG HSG FMALE 6POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WA35SNLC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Features	Coupling Nut, Self Locking
Grade	Military
Housing Color	Olive Drab
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Type	For Female Sockets

D38999/26WA Series

Part	Orientation	Type	Features	Grade	Contact Size	Mounting Type	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Note	Qualification	Housing Color	Contact Shape	Shell Size, MIL	Contact Type	Shell Material	Termination	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Applications	Insert Material	Primary Material	Contact Material	Number of Positions	Contact Size
Amphenol Aerospace Operations D38999/26WA98PB-LC	B	For Male Pins	Coupling Nut Self Locking	Military	20	Free Hanging (In-Line)	Plug Housing	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum
Amphenol Aerospace Operations D38999/26WA98PN	N		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Male Pins Plug	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	1.27 µm	50 µin	Gold	Aerospace Aviation Marine Military	Thermoplastic	Metal	Copper Alloy
Amphenol Aerospace Operations D38999/26WA98AB	B	For Male Pins	Coupling Nut Self Locking	Military	20	Free Hanging (In-Line)	Plug Housing	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum
Amphenol Aerospace Operations D38999/26WA35HB	B		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Male Pins Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aviation Marine Military		Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA35HN	N		Coupling Nut	Military		Free Hanging (In-Line)	Male Pins Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aerospace Aviation Military		Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA98HN	N		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Male Pins Plug	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aviation Marine Military		Metal	Copper Alloy
Amphenol Aerospace Operations D38999/26WA35SN	N		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Female Sockets Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	1.27 µm	50 µin	Gold	Aerospace Aviation Marine Military	Thermoplastic	Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA98BA	A	For Female Sockets	Coupling Nut Self Locking	Military	20	Free Hanging (In-Line)	Plug Housing	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum
Amphenol Aerospace Operations D38999/26WA35JA	A		Coupling Nut	Military		Free Hanging (In-Line)	Female Sockets Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aerospace Aviation Military		Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA35SNLC	N	For Female Sockets	Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Plug Housing	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum							Thermoplastic	Metal		6	22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.40
		10	$ 28.13
		25	$ 25.50
		50	$ 23.73
		100	$ 22.12
		250	$ 20.23
		500	$ 18.95

Description

General part information

D38999/26WA Series

6 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Self Locking
