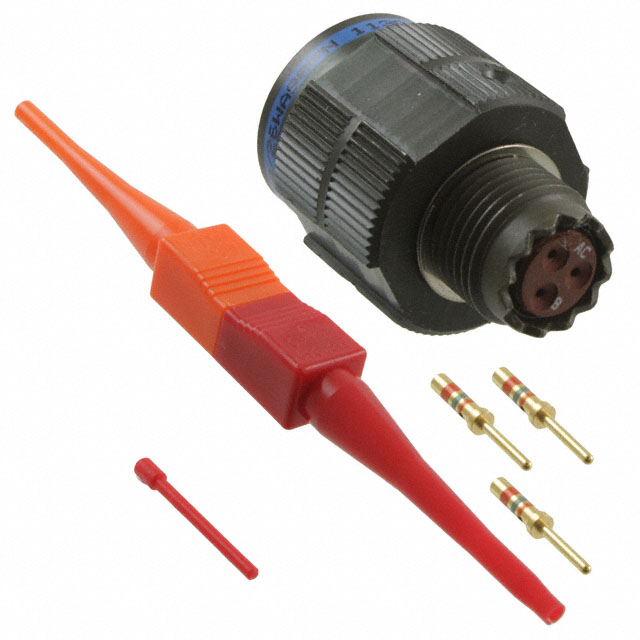

D38999/26WA98PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WA98PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WA98PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

D38999/26WA Series

Part	Orientation	Type	Features	Grade	Contact Size	Mounting Type	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Note	Qualification	Housing Color	Contact Shape	Shell Size, MIL	Contact Type	Shell Material	Termination	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Applications	Insert Material	Primary Material	Contact Material	Number of Positions	Contact Size
Amphenol Aerospace Operations D38999/26WA98PB-LC	B	For Male Pins	Coupling Nut Self Locking	Military	20	Free Hanging (In-Line)	Plug Housing	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum
Amphenol Aerospace Operations D38999/26WA98PN	N		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Male Pins Plug	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	1.27 µm	50 µin	Gold	Aerospace Aviation Marine Military	Thermoplastic	Metal	Copper Alloy
Amphenol Aerospace Operations D38999/26WA98AB	B	For Male Pins	Coupling Nut Self Locking	Military	20	Free Hanging (In-Line)	Plug Housing	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum
Amphenol Aerospace Operations D38999/26WA35HB	B		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Male Pins Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aviation Marine Military		Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA35HN	N		Coupling Nut	Military		Free Hanging (In-Line)	Male Pins Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aerospace Aviation Military		Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA98HN	N		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Male Pins Plug	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aviation Marine Military		Metal	Copper Alloy
Amphenol Aerospace Operations D38999/26WA35SN	N		Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Female Sockets Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	1.27 µm	50 µin	Gold	Aerospace Aviation Marine Military	Thermoplastic	Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA98BA	A	For Female Sockets	Coupling Nut Self Locking	Military	20	Free Hanging (In-Line)	Plug Housing	98	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum
Amphenol Aerospace Operations D38999/26WA35JA	A		Coupling Nut	Military		Free Hanging (In-Line)	Female Sockets Plug	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Olive Drab Cadmium		MIL-DTL-38999 Series III			A		Aluminum	Crimp	Olive Drab	2.54 çm	100 çin	Gold	Aerospace Aviation Military		Metal	Copper Alloy	6
Amphenol Aerospace Operations D38999/26WA35SNLC	N	For Female Sockets	Coupling Nut Self Locking	Military		Free Hanging (In-Line)	Plug Housing	35	9	Environment Resistant	Shielded	-65 ░C	347 °F	Cadmium	Contacts Not Included	MIL-DTL-38999 Series III	Olive Drab	Circular	A	Crimp	Aluminum							Thermoplastic	Metal		6	22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.01
		10	$ 44.97
		25	$ 40.83
		50	$ 38.04
		100	$ 35.51
		250	$ 32.54

Description

General part information

D38999/26WA Series

3 Position Circular Connector Plug, Male Pins Crimp
