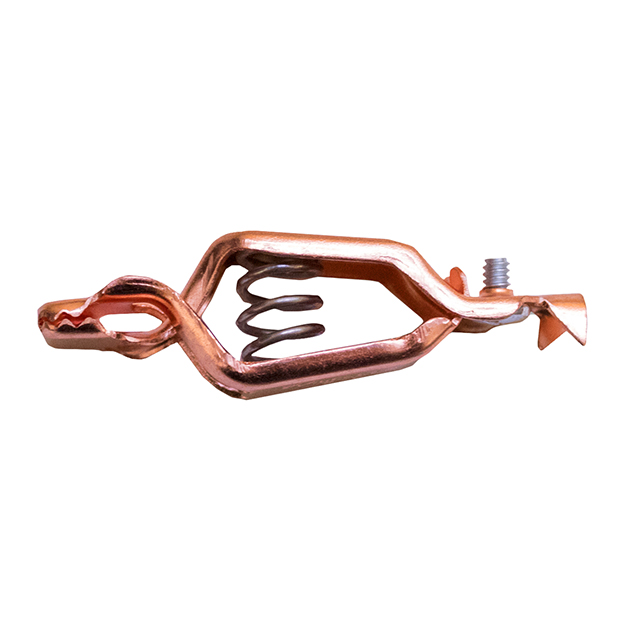

BU-27M

Active

Mueller Electric Co

TEST CLIP, CORROSION RESISTANT, 16 MM, 40 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-27M

Active

Mueller Electric Co

TEST CLIP, CORROSION RESISTANT, 16 MM, 40 A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-27M

Color	Natural
Current Rating (Amps)	40 A
Insulation	Non-Insulated
Jaw Opening	0.625 "
Jaw Opening	15.88 mm
Length	60.96 mm
Length [x]	2.4 in
Material	Copper
Quantity	1 Box
Termination	Crimp or Screw
Type	Heavy Duty, 3 Sided Jaw

BU-27 Series

Part	Current Rating (Amps)	Material	Ratings	Length [x]	Length [x]	Color	Jaw Opening	Jaw Opening	Termination	Insulation	Quantity	Type	Length
Mueller Electric Co BU-27C	40 A	Copper	AA59466-008	2.44 in	61.98 mm	Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Heavy Duty 3 Sided Jaw
Mueller Electric Co BU-27M	40 A	Copper		2.4 in		Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Heavy Duty 3 Sided Jaw	60.96 mm
Mueller Electric Co BU-27CGW	40 A	Copper		2.4 in		Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Geophone	60.96 mm
Mueller Electric Co BU-27X	20 A	Stainless Steel		2.44 in	61.98 mm	Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Heavy Duty 3 Sided Jaw

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.91
		10	$ 2.38
		100	$ 2.26
		500	$ 2.19
		1000	$ 2.16
Newark	Each	1	$ 3.34
		100	$ 3.11
		500	$ 2.91
		1000	$ 2.68
		2500	$ 2.44

Description

General part information

BU-27 Series

The BU-27M from Mueller Electric is a general purpose clip designed to thrive in coastal/marine environments. The solid copper, brass and stainless steel construction provide excellent corrosion resistance. Salt water testing has shown that this clip will last up to five times longer than traditional steel or copper clips.
