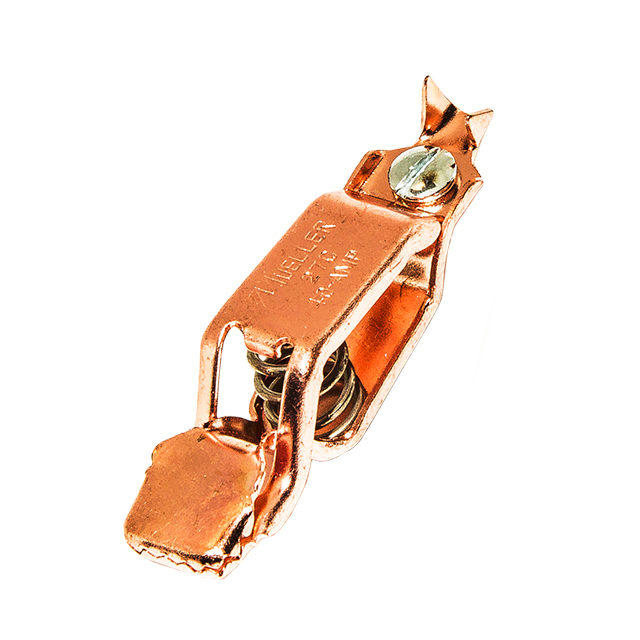

BU-27C

Active

Mueller Electric Co

TEST CLIP, SOLID COPPER, COMPRESSION SPRING, 40 A, 0.44" TO 0.62" JAW OPENING

Find alt

Alpha

BU-27C

Active

Mueller Electric Co

TEST CLIP, SOLID COPPER, COMPRESSION SPRING, 40 A, 0.44" TO 0.62" JAW OPENING

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

BU-27 Series

BU-27C is a 40A general purpose copper clip. It is compatible with Mueller-brand BU-29 flexible PVC insulators. It connects to wire up to 12AWG via crimp or screw connection.

Technical Specifications

Parameters and characteristics for this part

Specification	BU-27C

Color	Natural
Current Rating	40 A
Insulation	Non-Insulated
Jaw Opening	0.625 in
Length	2.44 in
Material	Copper
Quantity	1 Piece
Ratings	AA59466-008
Termination	Crimp or Screw
Type	3 Sided Jaw, Heavy Duty

BU-27 Series

Part	Lead Quantity	Contents	Stacking Method	Type	Material - Insulation	Cable Length	Wire Gauge	2nd Connector	2nd Connector Count	1st Connector	Configuration	Ratings	Rating (CAT II)	Quantity	Color	Length	Plating	Insulation	Material	Current Rating	Jaw Opening	Termination	Termination Size	Termination Probe Tip OD	Voltage Rating	Length - Tip	Connection Type	Length - Overall	Material - Tip	Tip Plating	Material - Body	Tip Type	Plug/Mating Plug Diameter	Gender	Mounting Type	Tool Type	Wire Entry Location	For Use With/Related Products	Tool Method	Ratcheting	Voltage - Rated	Accessory Type
Mueller Electric Co BU-7014-B-36-0	1	Black	Front Multi-Stacking Vertical	Patch Cord	Poly-Vinyl Chloride PVC	914.4 mm	RG-58C/U	Micro Hook	2 pcs	Banana Plug Double Stackable	Banana to Grabber Hook
Mueller Electric Co BU-65-8				Alligator	Nylon PA Polyamide							CAT II IEC 61010	1000 V	1 Piece	Gray	0.275 ft	Nickel	Insulated	Steel	30 A	0.75 in	Banana	4 mm	4 mm
Mueller Electric Co BU-26130-0												1010 IEC		1 Piece	Black					20 A					1000 V	3.772 in	Banana Female Socket (Jack)	6.27 in	Brass	Nickel Plated	Nylon	Long Probe Tip
Mueller Electric Co BU-43-2
Mueller Electric Co BU-58				Clamp										1 Piece	Natural	2.31 in	Zinc	Non-Insulated	Steel	50 A	1.375 in	Screw
Mueller Electric Co BU-32615-9				Tip Jack											White			Non-Mating End Insulated				Solder											Standard Tip	Male	Panel Mount
Mueller Electric Co BU-CRIMPER																																				Hand Crimper	Side Entry	Alligator Clips	Manual	No Ratchet
Mueller Electric Co BU-63C-6				Alligator	Poly-Vinyl Chloride PVC									1 Piece	Blue	2.25 in		Insulated	Copper	10 A	0.31 in	Banana Female Socket (Jack)
Mueller Electric Co BU-1120-A-48-0	1	Black	Front Multi-Stacking Vertical	Patch Cord	Nylon Poly-Vinyl Chloride PVC	48 in	20 AWG	Mini Hook		Banana Plug Single Stackable	Banana to Grabber Hook	CAT II	300 V							5 A																					300 VAC
Mueller Electric Co BU-90-5				Lead Probe Test Clip																																		BU-27C BU-27CG BU-27CGW Geophone Clips: BU-27				Green Insulator
