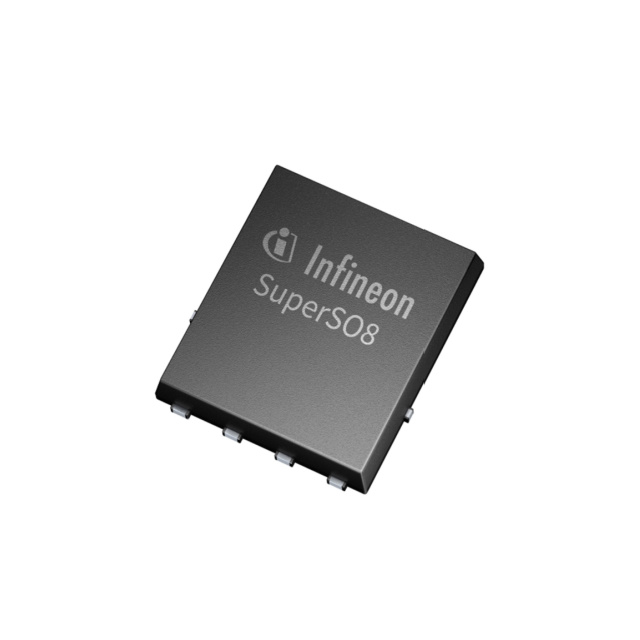

BSC020N03LSGATMA2

Active

Infineon Technologies

LV POWER MOS

Search across all available documentation for this part.

Active

Infineon Technologies

LV POWER MOS

Technical Specifications

Parameters and characteristics for this part

Specification	BSC020N03LSGATMA2

null

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Vgs (Max)	Package / Case	Drain to Source Voltage (Vdss)	Supplier Device Package	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Technology	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs
Infineon Technologies BSC020N03LSGATMA2
Infineon Technologies BSC020N03MSGATMA1	124 nC	-55 °C	150 °C	9600 pF	N-Channel	20 V	8-PowerTDFN	30 V	PG-TDSON-8-1	Surface Mount	4.5 V 10 V	MOSFET (Metal Oxide)	2.5 W 96 W	25 A 100 A	2 V	2 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LV POWER MOS

Technical documentation and resources

No documents available
