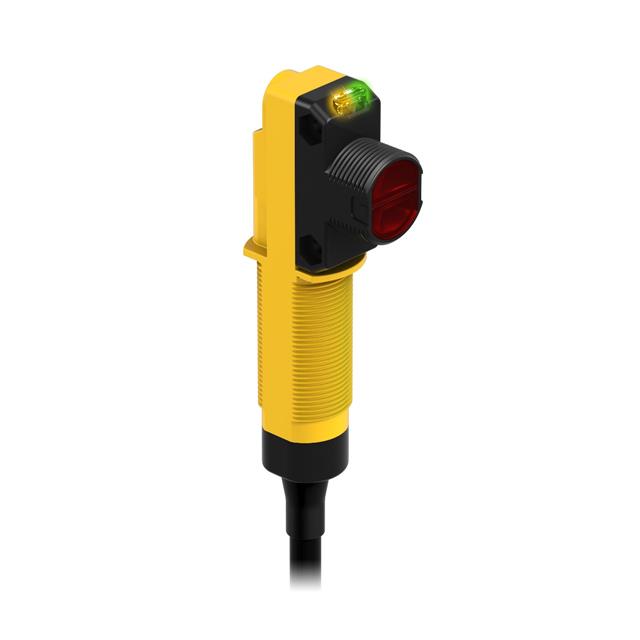

QS18RPWLV

Active

BANNER ENGINEERING

WORLD-BEAM QS18 UNIV VOLT; RETRO

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORLD-BEAM QS18 UNIV VOLT; RETRO

Technical Specifications

Parameters and characteristics for this part

Specification	QS18RPWLV

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red
Light Source	630 nm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Dark-On
Response Time	8.3 ms
Sensing Distance	6.5 m
Sensing Distance	21.33 ft
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	140 VAC, 140 V
Voltage - Supply [Min]	20 VAC, 20 VDC

Part	Ingress Protection	Connection Method	Cable Length	Cable Length	Light Source	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Sensing Distance	Sensing Distance	Sensing Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]
BANNER ENGINEERING QS18RPWLV	NEMA 6P IEC IP67	Cable	78.74 in	2 m	Red	630 nm	70 °C	-25 °C	8.3 ms	6.5 m	21.33 ft	NonPolarized Retroreflective	Dark-On	140 VAC 140 V	20 VAC 20 VDC
BANNER ENGINEERING QS18RPWDXL	NEMA 6P IEC IP67	Cable	78.74 in	2 m	Infrared		70 °C	-25 °C	8.3 ms	1 m	39.37 in	Diffuse	Dark-On	140 VAC 140 V	20 VAC 20 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 121.00
Newark	Each	1	$ 123.00

General part information

Retroreflective, NonPolarized Optical Sensor 21.33' (6.5m) Dark-On
