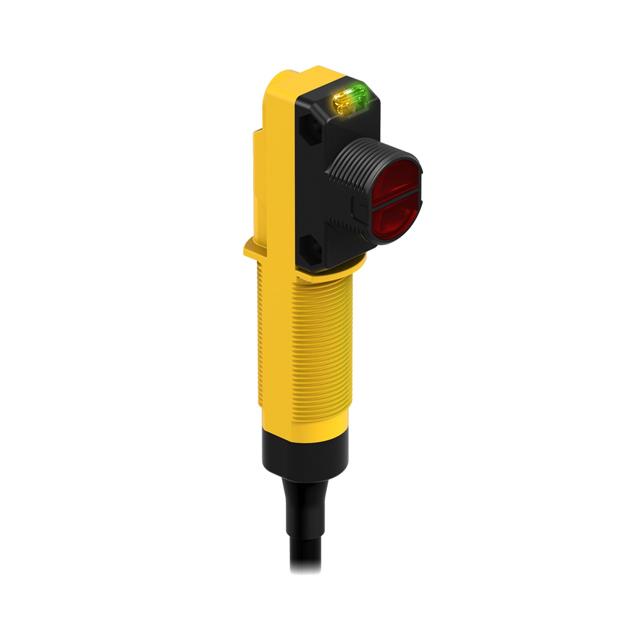

QS18RPWDXL
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, QS18 SERIES, WORLD-BEAM, DIFFUSE, 1M, MOSFET, 20-140V, PRE-WIRED
Deep-Dive with AI
Search across all available documentation for this part.
QS18RPWDXL
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, QS18 SERIES, WORLD-BEAM, DIFFUSE, 1M, MOSFET, 20-140V, PRE-WIRED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QS18RPWDXL |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | NEMA 6P, IEC IP67 |
| Light Source | Infrared |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Dark-On |
| Response Time | 8.3 ms |
| Sensing Distance | 39.37 in |
| Sensing Distance | 1 m |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 140 VAC, 140 V |
| Voltage - Supply [Min] | 20 VAC, 20 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QS18R Series
Diffuse Optical Sensor 39.370" (1m) Dark-On
