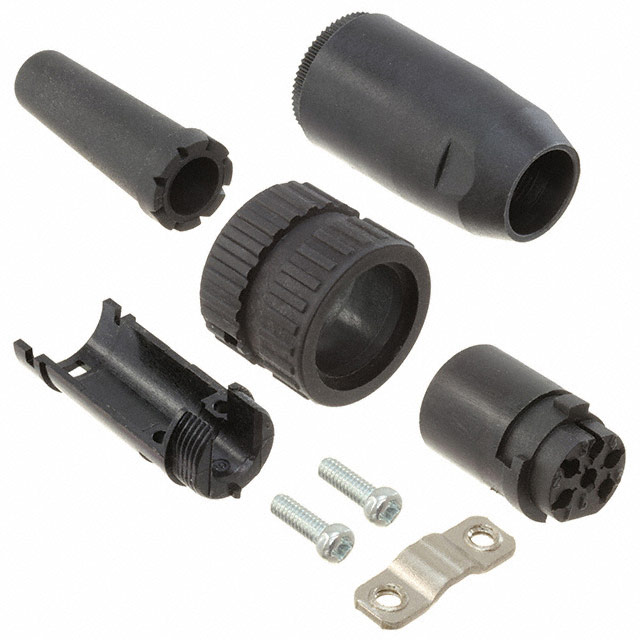

T 3424 951

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 6POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T 3424 951

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 6POS INLINE

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3424 951

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Strain Relief, Coupling Nut
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-6
Shielding	Unshielded
Type	For Male Pins

T 3424 Series

Part	Contact Shape	Orientation	Fastening Type	Shielding	Contact Type	Material Flammability Rating	Contact Size	Shell Size - Insert	Ingress Protection	Features	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Finish	Housing Color	Note	Type	Mounting Type	Connector Type	Insert Material	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Primary Material	Color
Amphenol Tuchel Industrial T 3424 552	Circular	Keyed	Bayonet Lock	Unshielded	Crimp	UL94 V-0	1.5 mm	M16-6	IP40	Backshell Cable Clamp Coupling Nut	Die Cast	100 °C	-40 °C	6	Nickel	Black Silver	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Plug Housing	Thermoplastic
Amphenol Tuchel Industrial T 3424 991		Keyed	Bayonet Lock					M16-6	IP40	Strain Relief	Plastic	100 °C	-40 °C	6					Free Hanging (In-Line)	Male Pins Plug		7 A	250 VDC	Silver	Plastic
Amphenol Tuchel Industrial T 3424 518		Keyed	Bayonet Lock					M16-6	IP40	Strain Relief	Die Cast	100 °C	-40 °C	6	Nickel				Free Hanging (In-Line)	Male Pins Plug		7 A	250 VDC	Gold	Metal	Silver
Amphenol Tuchel Industrial T 3424 951	Circular	Keyed	Bayonet Lock	Unshielded	Crimp	UL94 V-0	1.5 mm	M16-6	IP40	Coupling Nut Strain Relief	Plastic	100 °C	-40 °C	6		Black	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Plug Housing	Thermoplastic
Amphenol Tuchel Industrial T 3424 005		Keyed	Bayonet Lock					M16-6	IP40	Strain Relief	Die Cast	100 °C	-40 °C	6	Nickel				Free Hanging (In-Line) Right Angle	Male Pins Plug		7 A	250 VDC	Silver	Metal	Silver
Amphenol Tuchel Industrial T 3424 551	Circular	Keyed	Bayonet Lock	Unshielded	Crimp	UL94 V-0	1.5 mm	M16-6	IP40	Cable Clamp Coupling Nut Strain Relief	Die Cast	100 °C	-40 °C	6	Nickel	Black Silver	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Plug Housing	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.44
		10	$ 3.13
		25	$ 2.96
		50	$ 2.89
		100	$ 2.75
		250	$ 2.42

Description

General part information

T 3424 Series

6 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Strain Relief

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
