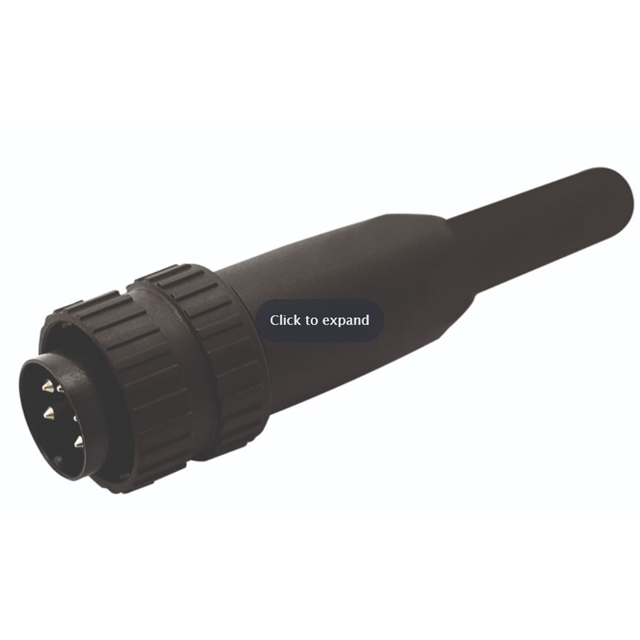

T 3424 991

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 6P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T 3424 991

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 6P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3424 991

Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M16-6
Voltage Rating	250 VDC

T 3424 Series

Part	Contact Shape	Orientation	Fastening Type	Shielding	Contact Type	Material Flammability Rating	Contact Size	Shell Size - Insert	Ingress Protection	Features	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Finish	Housing Color	Note	Type	Mounting Type	Connector Type	Insert Material	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Primary Material	Color
Amphenol Tuchel Industrial T 3424 552	Circular	Keyed	Bayonet Lock	Unshielded	Crimp	UL94 V-0	1.5 mm	M16-6	IP40	Backshell Cable Clamp Coupling Nut	Die Cast	100 °C	-40 °C	6	Nickel	Black Silver	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Plug Housing	Thermoplastic
Amphenol Tuchel Industrial T 3424 991		Keyed	Bayonet Lock					M16-6	IP40	Strain Relief	Plastic	100 °C	-40 °C	6					Free Hanging (In-Line)	Male Pins Plug		7 A	250 VDC	Silver	Plastic
Amphenol Tuchel Industrial T 3424 518		Keyed	Bayonet Lock					M16-6	IP40	Strain Relief	Die Cast	100 °C	-40 °C	6	Nickel				Free Hanging (In-Line)	Male Pins Plug		7 A	250 VDC	Gold	Metal	Silver
Amphenol Tuchel Industrial T 3424 951	Circular	Keyed	Bayonet Lock	Unshielded	Crimp	UL94 V-0	1.5 mm	M16-6	IP40	Coupling Nut Strain Relief	Plastic	100 °C	-40 °C	6		Black	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Plug Housing	Thermoplastic
Amphenol Tuchel Industrial T 3424 005		Keyed	Bayonet Lock					M16-6	IP40	Strain Relief	Die Cast	100 °C	-40 °C	6	Nickel				Free Hanging (In-Line) Right Angle	Male Pins Plug		7 A	250 VDC	Silver	Metal	Silver
Amphenol Tuchel Industrial T 3424 551	Circular	Keyed	Bayonet Lock	Unshielded	Crimp	UL94 V-0	1.5 mm	M16-6	IP40	Cable Clamp Coupling Nut Strain Relief	Die Cast	100 °C	-40 °C	6	Nickel	Black Silver	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Plug Housing	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 6.13

Description

General part information

T 3424 Series

6 Position Circular Connector Plug, Male Pins Solder Cup
