BC084-50-A-0390-L-C

Active

GCT

CONN RCPT 50POS 0.039 GOLD SMD

Search across all available documentation for this part.

Active

GCT

CONN RCPT 50POS 0.039 GOLD SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

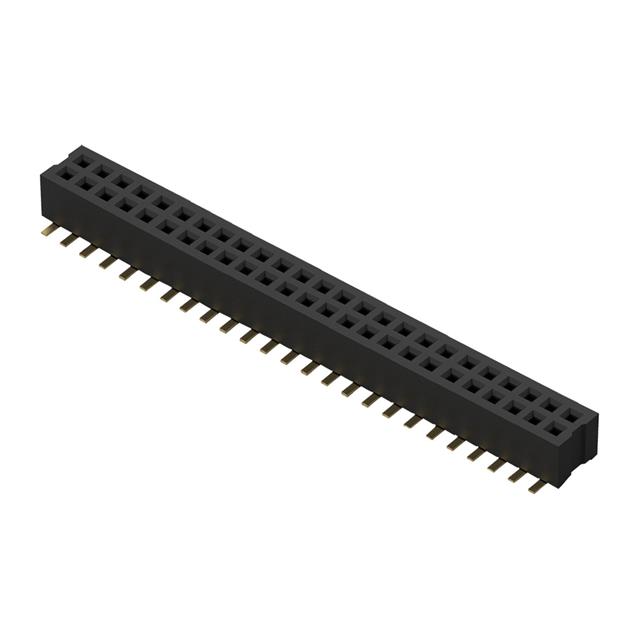

50 Position Receptacle, Bottom or Top Entry Connector 0.039" (1.00mm) Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BC084-50-A-0390-L-C	BC084 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	50	6 - 50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing - Mating	0.039 "	0.039 "
Row Spacing - Mating	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT 50POS 0.039 GOLD SMD

Part	Voltage Rating	Contact Shape	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Termination	Fastening Type	Current Rating (Amps)	Insulation Material	Contact Finish - Post	Mounting Type	Material Flammability Rating	Contact Material	Contact Finish Thickness - Post	Features	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Number of Rows	Contact Finish Thickness - Mating
GCT BC084-50-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	50	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
GCT BC084-24-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	24	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
GCT BC084-40-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	40	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
GCT BC084-06-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	6	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
