BC084-24-A-0390-L-C

Active

GCT

BC084-24-A-0390-L-C

Search across all available documentation for this part.

Active

GCT

BC084-24-A-0390-L-C

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC084-24-A-0390-L-C	BC084 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	24	6 - 50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing - Mating	0.039 "	0.039 "
Row Spacing - Mating	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT 50POS 0.039 GOLD SMD

Part	Voltage Rating	Contact Shape	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Termination	Fastening Type	Current Rating (Amps)	Insulation Material	Contact Finish - Post	Mounting Type	Material Flammability Rating	Contact Material	Contact Finish Thickness - Post	Features	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Number of Rows	Contact Finish Thickness - Mating
GCT BC084-50-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	50	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
GCT BC084-24-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	24	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
GCT BC084-40-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	40	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash
GCT BC084-06-A-0390-L-C	250 VAC	Square	Black	0.039 "	1 mm	All	Solder	Push-Pull	1 A	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Board Guide	6	Female Socket	0.039 in	1 mm	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Gold	2	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

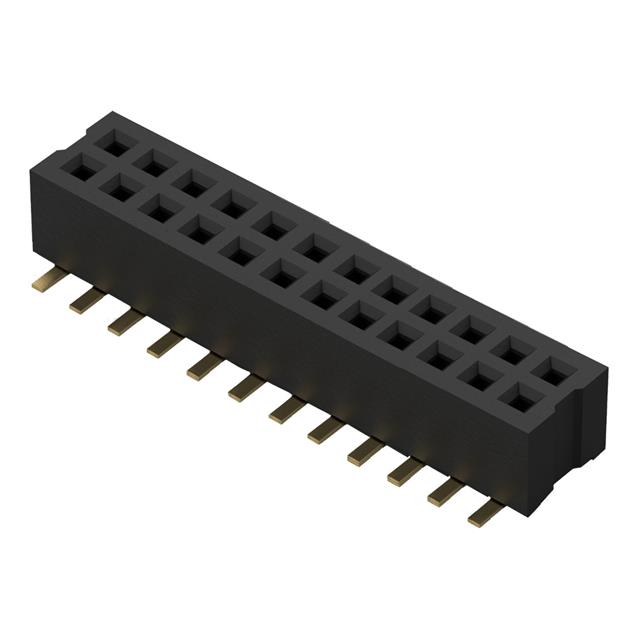

24 Position Receptacle, Bottom or Top Entry Connector 0.039" (1.00mm) Surface Mount Gold
