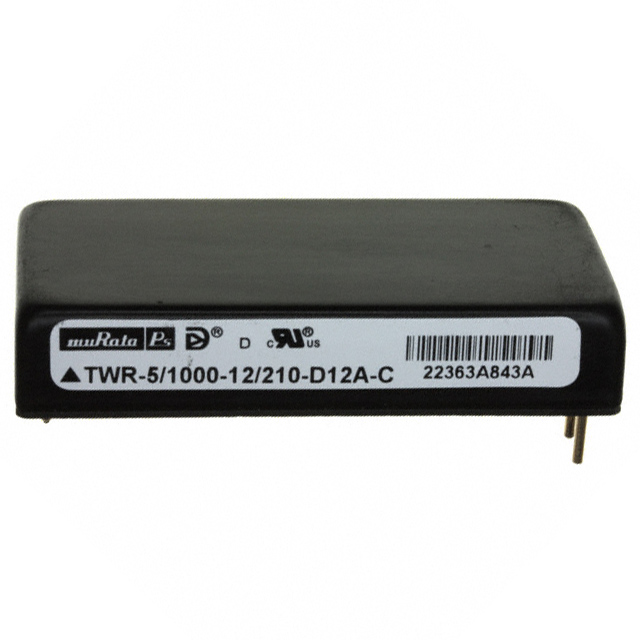

TWR-5/1000-12/210-D12A-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V +/-12V 10W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V +/-12V 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TWR-5/1000-12/210-D12A-C	TWR-5 Series

	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	210 mA	210 mA
Current - Output (Max)	210 mA	210 mA
Current - Output (Max)	1 A	1 - 500 A
Efficiency	84 %	84 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	3	3
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module, 6 Leads	8-DIP Module, 7 Leads, 7-DIP Module, 6 Leads
Power (Watts)	10 W	10 - 20 W
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [x]	2 in	2 in
Size / Dimension [y]	25.4 mm	25.4 - 50.8 mm
Size / Dimension [y]	25.4 mm	2 - 25.4 in
Size / Dimension [z]	0.38 in	0.38 - 0.45 "
Size / Dimension [z]	9.7 mm	9.7 - 11.4 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	18 - 36 V
Voltage - Input (Min) [Min]	9 V	9 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	5 V	5 V
Voltage - Output 2	12 V	12 - 15 V
Voltage - Output 3	-12 V	-15 - -12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

ISOLATED BOARD MOUNT DC/DC CONVERTER, ITE, 3 OUTPUT, 20 W, 5 V, 3 A, +/-15 V

Part	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 2	Applications	Voltage - Isolation	Current - Output (Max)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Package / Case	Voltage - Output 1	Voltage - Output 3	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. TWR-5/3000-15/500-D12A-C	3	36 V	15 V	ITE (Commercial)	1.5 kV	3 A, 500 mA	9 V	100 °C	-40 °C	20 W	8-DIP Module, 7 Leads	5 V	-15 V	Isolated Module	Through Hole	50.8 mm	2 in	0.45 "	2 in	50.8 mm	11.4 mm
Murata Power Solutions Inc. TWR-5/3000-15/500-D12A-C
Murata Power Solutions Inc. TWR-5/1000-12/210-D12A-C	3	18 V	12 V	ITE (Commercial)	1.5 kV	1 A	9 V	100 °C	-40 °C	10 W	7-DIP Module, 6 Leads	5 V	-12 V	Isolated Module	Through Hole	50.8 mm	2 in	0.38 in	25.4 mm	25.4 mm	9.7 mm	84 %	210 mA	210 mA

General part information

Isolated Module DC DC Converter 3 Output 5V 12V -12V 1A, 210mA, 210mA 9V - 18V Input
