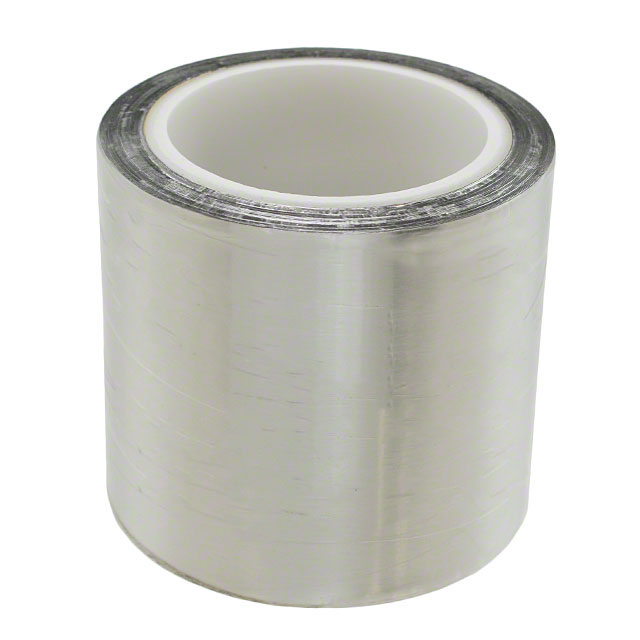

433L-2-5
Active3M (TC)
TAPE ALUMINUM FOIL SILVER 2"X5YD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
433L-2-5
Active3M (TC)
TAPE ALUMINUM FOIL SILVER 2"X5YD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 433L-2-5 |
|---|---|
| Adhesive | Silicone Thermosetting |
| Backing, Carrier | Aluminum Foil |
| Color | Silver |
| Length | 4.6 m |
| Length | 15 ft |
| Length | 5 yd |
| Shelf Life | 18 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 60 °F, 16 °C |
| Tape Type | Aluminum Foil |
| Temperature Range [Max] | 600 °F, 316 °C |
| Temperature Range [Min] | -65 °F, -54 °C |
| Thickness - Adhesive | 0.041 mm |
| Thickness - Adhesive | 1.6 mils |
| Thickness - Adhesive | 0.0016 " |
| Thickness - Backing, Carrier | 0.002 " |
| Thickness - Backing, Carrier | 0.051 mm |
| Thickness - Backing, Carrier | 2 mils |
| Usage | Heat Dissipation, Reflection |
| Width [y] | 2 " |
| Width [y] | 50.8 mm |
433L Series
| Part | Length | Length | Length | Temperature Range [Min] | Temperature Range [Max] | Shelf Life | Adhesive | Usage | Shelf Life Start | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Width [x] | Width [x] | Backing, Carrier | Tape Type | Color | Width | Width | Width | Width [y] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 4.6 m | 15 ft | 5 yd | -65 °F -54 °C | 316 °C 600 °F | 18 Months | Silicone Thermosetting | Heat Dissipation Reflection | Date of Manufacture | 0.041 mm | 1.6 mils | 0.0016 " | 0.002 " | 0.051 mm | 2 mils | 16 °C 60 °F | 27 °C 80 °F | 25.4 mm | 1 in | Aluminum Foil | Aluminum Foil | Silver | |||||
3M (TC) | 4.6 m | 15 ft | 5 yd | -65 °F -54 °C | 316 °C 600 °F | 18 Months | Silicone Thermosetting | Heat Dissipation Reflection | Date of Manufacture | 0.041 mm | 1.6 mils | 0.0016 " | 0.002 " | 0.051 mm | 2 mils | 16 °C 60 °F | 27 °C 80 °F | 152.4 mm | 6 in | Aluminum Foil | Aluminum Foil | Silver | |||||
3M (TC) | 4.6 m | 15 ft | 5 yd | -65 °F -54 °C | 316 °C 600 °F | 18 Months | Silicone Thermosetting | Heat Dissipation Reflection | Date of Manufacture | 0.041 mm | 1.6 mils | 0.0016 " | 0.002 " | 0.051 mm | 2 mils | 16 °C 60 °F | 27 °C 80 °F | Aluminum Foil | Aluminum Foil | Silver | 0.75 in | 19.05 mm | 0.75 in | ||||
3M (TC) | 4.6 m | 15 ft | 5 yd | -65 °F -54 °C | 316 °C 600 °F | 18 Months | Silicone Thermosetting | Heat Dissipation Reflection | Date of Manufacture | 0.041 mm | 1.6 mils | 0.0016 " | 0.002 " | 0.051 mm | 2 mils | 16 °C 60 °F | 27 °C 80 °F | Aluminum Foil | Aluminum Foil | Silver | 2 " | 50.8 mm | |||||
3M (TC) | 4.6 m | 15 ft | 5 yd | -65 °F -54 °C | 316 °C 600 °F | 18 Months | Silicone Thermosetting | Heat Dissipation Reflection | Date of Manufacture | 0.041 mm | 1.6 mils | 0.0016 " | 0.002 " | 0.051 mm | 2 mils | 16 °C 60 °F | 27 °C 80 °F | 101.6 mm | 4 " | Aluminum Foil | Aluminum Foil | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.48 | |
| 10 | $ 74.06 | |||
| 25 | $ 69.36 | |||
| 100 | $ 67.89 | |||
Description
General part information
433L Series
Aluminum Foil Tape Silicone Thermosetting Adhesive Silver 2.00" (50.80mm) X 15' (4.6m) 5 yds
