433L-4-5

Active

3M (TC)

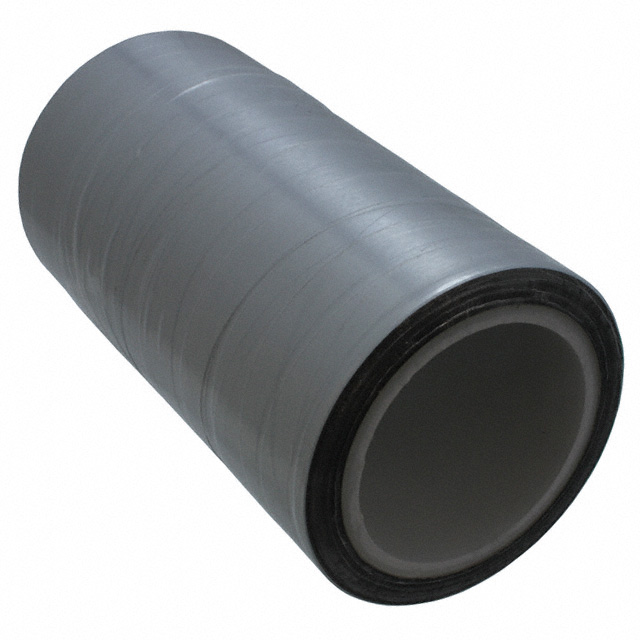

TAPE ALUMINUM FOIL SILVER 4"X5YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

433L-4-5

Active

3M (TC)

TAPE ALUMINUM FOIL SILVER 4"X5YD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	433L-4-5

Adhesive	Silicone Thermosetting
Backing, Carrier	Aluminum Foil
Color	Silver
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Aluminum Foil
Temperature Range [Max]	600 °F, 316 °C
Temperature Range [Min]	-65 °F, -54 °C
Thickness - Adhesive	0.041 mm
Thickness - Adhesive	1.6 mils
Thickness - Adhesive	0.0016 "
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	Heat Dissipation, Reflection
Width [x]	4 "
Width [x]	101.6 mm

433L Series

Part	Length	Length	Length	Temperature Range [Min]	Temperature Range [Max]	Shelf Life	Adhesive	Usage	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [x]	Width [x]	Backing, Carrier	Tape Type	Color	Width	Width	Width	Width [y]	Width [y]
3M (TC) 433L-1-5	4.6 m	15 ft	5 yd	-65 °F -54 °C	316 °C 600 °F	18 Months	Silicone Thermosetting	Heat Dissipation Reflection	Date of Manufacture	0.041 mm	1.6 mils	0.0016 "	0.002 "	0.051 mm	2 mils	16 °C 60 °F	27 °C 80 °F	25.4 mm	1 in	Aluminum Foil	Aluminum Foil	Silver
3M (TC) 433L-6-5	4.6 m	15 ft	5 yd	-65 °F -54 °C	316 °C 600 °F	18 Months	Silicone Thermosetting	Heat Dissipation Reflection	Date of Manufacture	0.041 mm	1.6 mils	0.0016 "	0.002 "	0.051 mm	2 mils	16 °C 60 °F	27 °C 80 °F	152.4 mm	6 in	Aluminum Foil	Aluminum Foil	Silver
3M (TC) 433L-0.75-5	4.6 m	15 ft	5 yd	-65 °F -54 °C	316 °C 600 °F	18 Months	Silicone Thermosetting	Heat Dissipation Reflection	Date of Manufacture	0.041 mm	1.6 mils	0.0016 "	0.002 "	0.051 mm	2 mils	16 °C 60 °F	27 °C 80 °F			Aluminum Foil	Aluminum Foil	Silver	0.75 in	19.05 mm	0.75 in
3M (TC) 433L-2-5	4.6 m	15 ft	5 yd	-65 °F -54 °C	316 °C 600 °F	18 Months	Silicone Thermosetting	Heat Dissipation Reflection	Date of Manufacture	0.041 mm	1.6 mils	0.0016 "	0.002 "	0.051 mm	2 mils	16 °C 60 °F	27 °C 80 °F			Aluminum Foil	Aluminum Foil	Silver				2 "	50.8 mm
3M (TC) 433L-4-5	4.6 m	15 ft	5 yd	-65 °F -54 °C	316 °C 600 °F	18 Months	Silicone Thermosetting	Heat Dissipation Reflection	Date of Manufacture	0.041 mm	1.6 mils	0.0016 "	0.002 "	0.051 mm	2 mils	16 °C 60 °F	27 °C 80 °F	101.6 mm	4 "	Aluminum Foil	Aluminum Foil	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 146.15
		10	$ 139.23
		25	$ 136.27

Description

General part information

433L Series

Aluminum Foil Tape Silicone Thermosetting Adhesive Silver 4.00" (101.60mm) X 15' (4.6m) 5 yds
