Specification	10132798-032110LF

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	1 µin
Features	Solder Retention
Height Above Board	0.106 in
Mated Stacking Height Options	6mm, 5mm, 5.5mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch	0.02 in

10132798 Series

Part	Height Above Board	Mated Stacking Height Options	Mounting Type	Number of Rows	Features	Connector Type	Contact Finish Thickness	Number of Positions	Contact Finish	Pitch
Amphenol ICC (FCI) 10132798-041120LF	0.085 in	3.5mm 3mm 4.5mm 4mm	Surface Mount	2	Board Guide	Center Strip Contacts Receptacle	1 µin	40	Gold	0.02 in
Amphenol ICC (FCI) 10132798-061100LF	0.085 in	3.5mm 3mm 4.5mm 4mm	Surface Mount	2	Board Guide Solder Retention	Center Strip Contacts Receptacle	1 µin	60	Gold	0.02 in
Amphenol ICC (FCI) 10132798-062120LF	0.106 in	5.5mm 5mm 6mm	Surface Mount	2	Board Guide	Center Strip Contacts Receptacle	1 µin	60	Gold	0.02 in
Amphenol ICC (FCI) 10132798-031100LF	0.085 in	3.5mm 3mm 4.5mm 4mm	Surface Mount	2	Board Guide Solder Retention	Center Strip Contacts Receptacle	1 µin	30	Gold	0.02 in
Amphenol ICC (FCI) 10132798-052130LF	0.106 in	5.5mm 5mm 6mm	Surface Mount	2		Center Strip Contacts Receptacle	1 µin	50	Gold	0.02 in

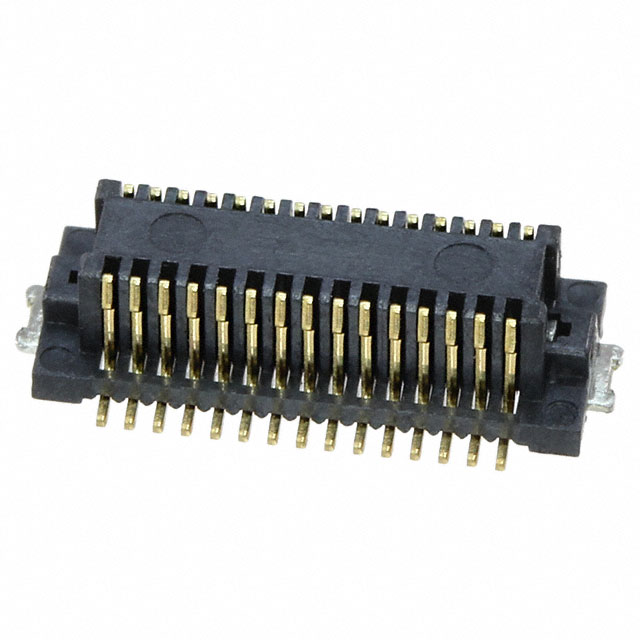

Amphenol ICC (FCI) 10132798-032100LF	0.106 in	5.5mm 5mm 6mm	Surface Mount	2	Board Guide Solder Retention	Center Strip Contacts Receptacle	1 µin	30	Gold	0.02 in
Amphenol ICC (FCI) 10132798-062130LF	0.106 in	5.5mm 5mm 6mm	Surface Mount	2		Center Strip Contacts Receptacle	1 µin	60	Gold	0.02 in
Amphenol ICC (FCI) 10132798-031120LF	0.085 in	3.5mm 3mm 4.5mm 4mm	Surface Mount	2	Board Guide	Center Strip Contacts Receptacle	1 µin	30	Gold	0.02 in
Amphenol ICC (FCI) 10132798-042100LF	0.106 in	5.5mm 5mm 6mm	Surface Mount	2	Board Guide Solder Retention	Center Strip Contacts Receptacle	1 µin	40	Gold	0.02 in
Amphenol ICC (FCI) 10132798-051110LF	0.085 in	3.5mm 3mm 4.5mm 4mm	Surface Mount	2	Solder Retention	Center Strip Contacts Receptacle	1 µin	50	Gold	0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

10170897-C050010LF

bergstak05 productpresentation Other Related Document

10132798-032110LF | Datasheet
