10132798-031100LF

Active

Amphenol ICC (FCI)

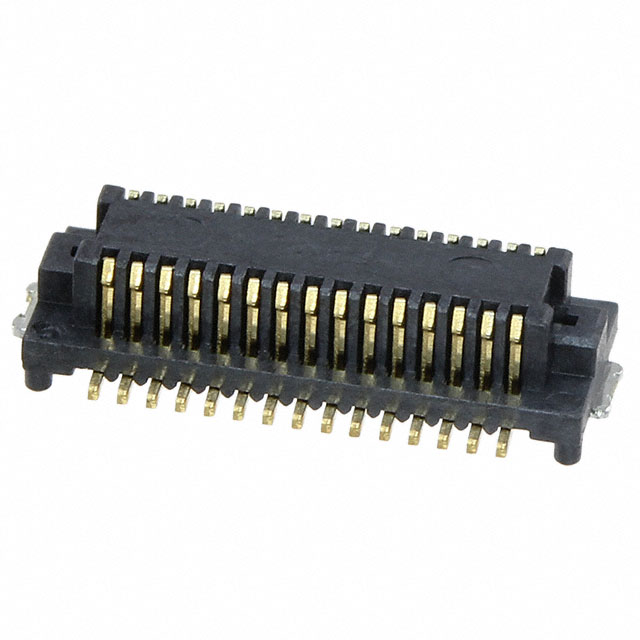

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10170897-C050010LF +1

10132798-031100LF

Active

Amphenol ICC (FCI)

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet 10170897-C050010LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10132798-031100LF

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Features	Solder Retention, Board Guide
Height Above Board	2.16 mm
Height Above Board	0.085 in
Mated Stacking Heights	3 mm, 3.5 mm, 4.5 mm, 4 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10132798 Series

Part	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Contact Finish	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) 10132798-041120LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide	Gold	3 mm 3.5 mm 4 mm 4.5 mm	40	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-061100LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	3 mm 3.5 mm 4 mm 4.5 mm	60	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-031100LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	3 mm 3.5 mm 4 mm 4.5 mm	30	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-052130LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2		Gold	5 mm 5.5 mm 6 mm	50	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) 10132798-062130LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2		Gold	5 mm 5.5 mm 6 mm	60	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) 10132798-031120LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide	Gold	3 mm 3.5 mm 4 mm 4.5 mm	30	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-042100LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	5 mm 5.5 mm 6 mm	40	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) 10132798-051100LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	3 mm 3.5 mm 4 mm 4.5 mm	50	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-041130LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2		Gold	3 mm 3.5 mm 4 mm 4.5 mm	40	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-062100LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	5 mm 5.5 mm 6 mm	60	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
