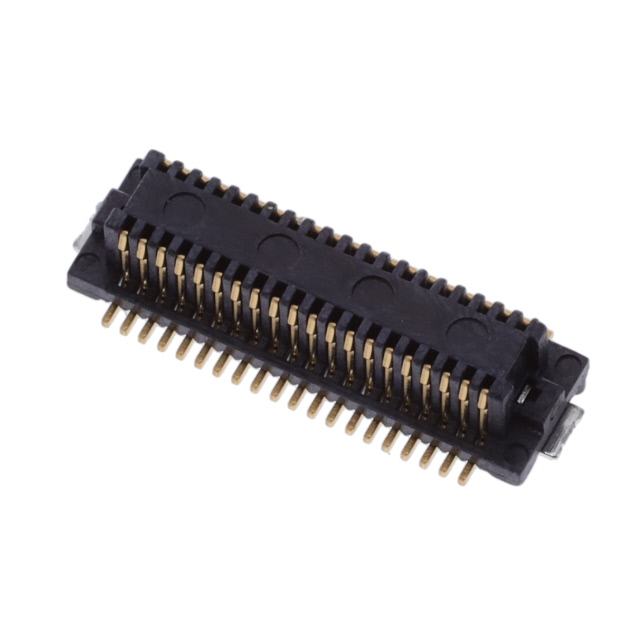

10132798-042100LF

Active

Amphenol ICC (FCI)

HEIGHT REC CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-1298 Other Related Document Datasheet +1

10132798-042100LF

Active

Amphenol ICC (FCI)

HEIGHT REC CONNECTOR

Deep-Dive with AI

Documentsgs-12-1298 Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10132798-042100LF

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Features	Solder Retention, Board Guide
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Mated Stacking Heights	5 mm, 5.5 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10132798 Series

Part	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Contact Finish	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) 10132798-041120LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide	Gold	3 mm 3.5 mm 4 mm 4.5 mm	40	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-061100LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	3 mm 3.5 mm 4 mm 4.5 mm	60	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-031100LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	3 mm 3.5 mm 4 mm 4.5 mm	30	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-052130LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2		Gold	5 mm 5.5 mm 6 mm	50	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) 10132798-062130LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2		Gold	5 mm 5.5 mm 6 mm	60	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) 10132798-031120LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide	Gold	3 mm 3.5 mm 4 mm 4.5 mm	30	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-042100LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	5 mm 5.5 mm 6 mm	40	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) 10132798-051100LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	3 mm 3.5 mm 4 mm 4.5 mm	50	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-041130LF	Center Strip Contacts Receptacle	2.16 mm	0.085 in	0.025 µm	1 µin	2		Gold	3 mm 3.5 mm 4 mm 4.5 mm	40	0.5 mm	0.02 in	Surface Mount
Amphenol ICC (FCI) 10132798-062100LF	Center Strip Contacts Receptacle			0.025 µm	1 µin	2	Board Guide Solder Retention	Gold	5 mm 5.5 mm 6 mm	60	0.5 mm	0.02 in	Surface Mount	0.106 in	2.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.56
		10	$ 1.19
		25	$ 1.07
		50	$ 0.99
		100	$ 0.92
		250	$ 0.83
		500	$ 0.83
	Tape & Reel (TR)	1500	$ 0.83
