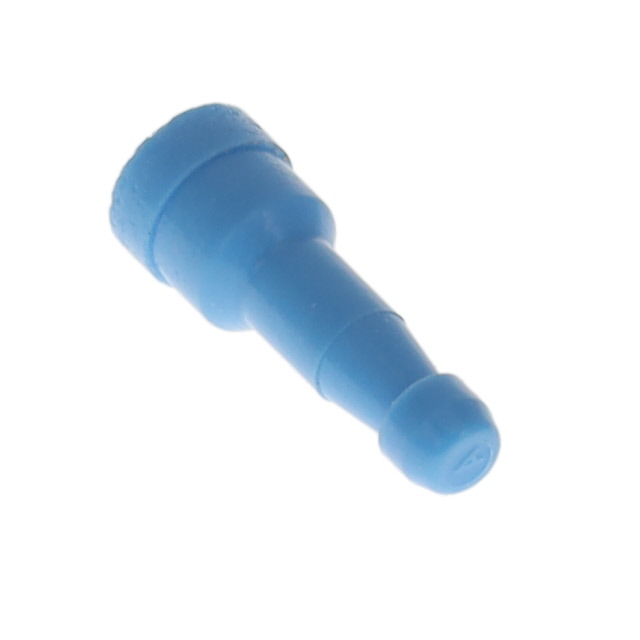

MX80A000XD1

Active

JAE Electronics

CONN DUMMY PLUG MX80 SERIES

Search across all available documentation for this part.

Active

JAE Electronics

CONN DUMMY PLUG MX80 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	MX80A000XD1

Accessory Type	Polarizing Device (Key, Plug, Post)
For Use With/Related Products	MX80 Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions	Contact Type	Connector Type	Contact Termination	Color	Mounting Type	Fastening Type	Note	Accessory Type	For Use With/Related Products
JAE Electronics MX80A02SZ1B	2.54 mm	0.1 in	1	Polybutylene Terephthalate (PBT) Glass Filled	125 °C	-40 °C	Waterproof (Mated IP67)	2	Female Socket	Socket	Crimp	Black	Free Hanging (In-Line)	Latch Lock
JAE Electronics MX80A02SZ1A	2.54 mm	0.1 in	1	Polybutylene Terephthalate (PBT) Glass Filled	125 °C	-40 °C	Waterproof (Mated IP67)	2	Female Socket	Socket	Crimp	Black	Free Hanging (In-Line)	Latch Lock	Contacts Not Included
JAE Electronics MX80A000XD1																Polarizing Device (Key Plug Post)	MX80 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Polarizing Device (Key, Plug, Post) For MX80 Series
