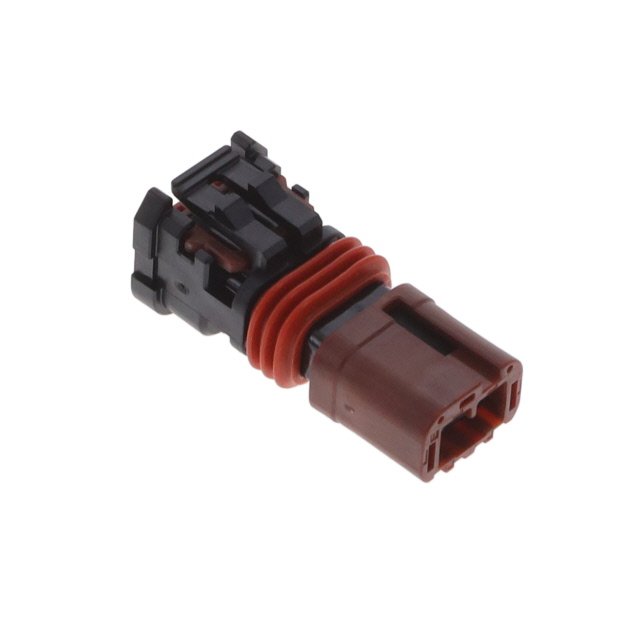

MX80A02SZ1B

Active

JAE Electronics

CONN SOCKET HSG 2POS 2.54MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN SOCKET HSG 2POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX80A02SZ1B

Color	Black
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof (Mated, IP67)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions	Contact Type	Connector Type	Contact Termination	Color	Mounting Type	Fastening Type	Note	Accessory Type	For Use With/Related Products
JAE Electronics MX80A02SZ1B	2.54 mm	0.1 in	1	Polybutylene Terephthalate (PBT) Glass Filled	125 °C	-40 °C	Waterproof (Mated IP67)	2	Female Socket	Socket	Crimp	Black	Free Hanging (In-Line)	Latch Lock
JAE Electronics MX80A02SZ1A	2.54 mm	0.1 in	1	Polybutylene Terephthalate (PBT) Glass Filled	125 °C	-40 °C	Waterproof (Mated IP67)	2	Female Socket	Socket	Crimp	Black	Free Hanging (In-Line)	Latch Lock	Contacts Not Included
JAE Electronics MX80A000XD1																Polarizing Device (Key Plug Post)	MX80 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Socket Black 0.100" (2.54mm)
