3341-25

Active

3M (TC)

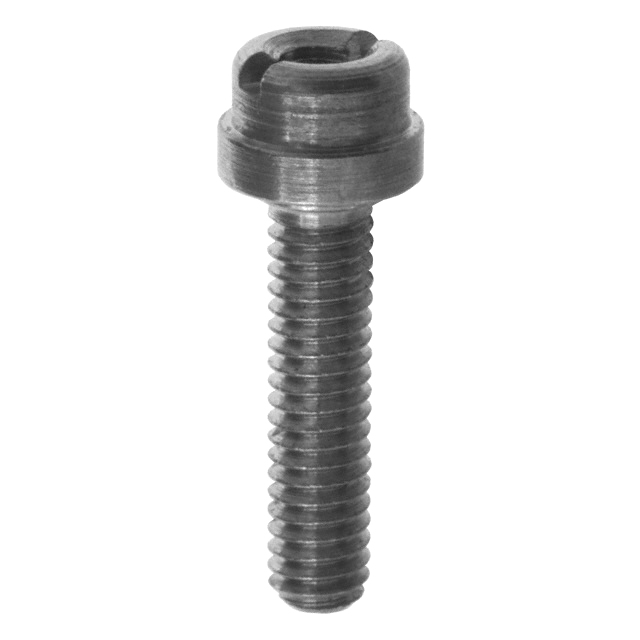

3M I/O CONNECTOR MOUNTING OPTIONS AND HARDWARE, 3341-25

Search across all available documentation for this part.

Active

3M (TC)

3M I/O CONNECTOR MOUNTING OPTIONS AND HARDWARE, 3341-25

Technical Specifications

Parameters and characteristics for this part

Specification	3341-25

Accessory Type	Jackscrew Socket, Slotted
For Use With/Related Products	MDR, D-Sub Connectors
Length - Threaded Portion Below Head	0.41 in
Length - Threaded Portion Below Head	10.41 mm
Thread Size	M2.5 Screw, M2 Socket

Part	Thread Size	Accessory Type	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	For Use With/Related Products	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [x]	Features	Length - Threaded Portion Below Head
3M (TC) 3341-31BULK	4-40 Socket M2.5 Screw	Jackscrew Socket Slotted	0.4 in	10.16 mm	D-Sub Connectors MDR	0.4 in	10.16 mm
3M (TC) 3341-30 BULK	4-40 Screw 4-40 Socket	Jackscrew Socket Slotted	0.4 in	10.16 mm	D-Sub Connectors MDR	0.4 in	10.16 mm
3M (TC) 3341 JACKSOCKET (SCR)	4-40 Screw 4-40 Socket	Jackscrew Socket			D-Sub Connectors			7.87 mm	0.31 in
3M (TC) 3341-32BULK	4-40 Socket M2.5 Screw	Jackscrew Socket Slotted	0.5 in		D-Sub Connectors MDR			12.7 mm	0.5 in	12.7 mm
3M (TC) 3341-10BULK	M2.5 Screw M2.5 Socket	Jackscrew Socket Slotted	0.35 in		D-Sub Connectors MDR			8.9 mm	0.35 in	8.9 mm
3M (TC) 3341-2	4-40 Screw 4-40 Socket	Jackscrew Socket	0.3 in		D-Sub Connectors Standard			10.92 mm	0.43 in	7.62 mm	Hardware Included Lock Washer
3M (TC) 3341-17 BULK	4-40 Screw 4-40 Socket	Jackscrew Socket Slotted	0.35 in		D-Sub Connectors MDR			8.9 mm	0.35 in	8.9 mm
3M (TC) 3341-25	M2 Socket M2.5 Screw	Jackscrew Socket Slotted		10.41 mm	D-Sub Connectors MDR							0.41 in
3M (TC) 3341-5		Screws			3000 Series
3M (TC) 3341-16BULK	4-40 Screw 4-40 Socket	Jackscrew Socket Slotted	0.35 in		D-Sub Connectors MDR			8.9 mm	0.35 in	8.9 mm
