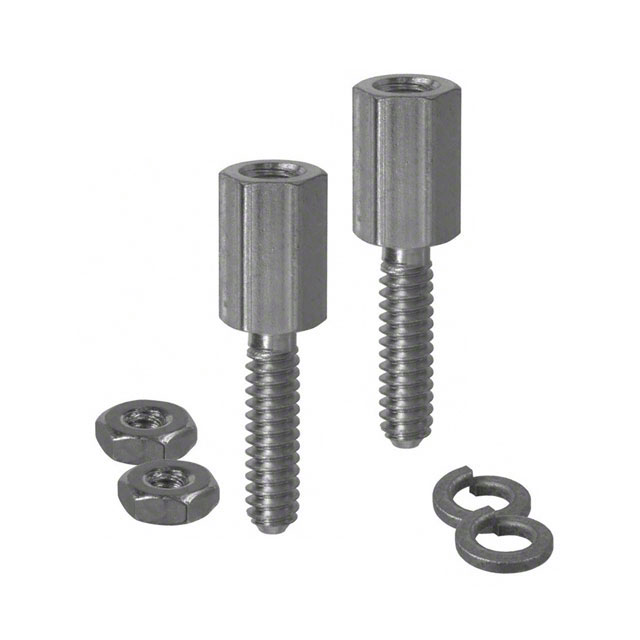

3341-2

Active

3M (TC)

80610210322 3341-2=J/SOCKETDSUBKIT,SINGLEKITPKG

Search across all available documentation for this part.

Active

3M (TC)

80610210322 3341-2=J/SOCKETDSUBKIT,SINGLEKITPKG

Technical Specifications

Parameters and characteristics for this part

Specification	3341-2

Accessory Type	Jackscrew Socket
Features	Lock Washer, Hardware Included
For Use With/Related Products	D-Sub Connectors, Standard
Length - Below Head [x]	10.92 mm
Length - Below Head [x]	0.43 in
Length - Threaded Portion Below Head [x]	7.62 mm
Length - Threaded Portion Below Head [x]	0.3 in
Thread Size	4-40 Screw, 4-40 Socket

Part	Thread Size	Accessory Type	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	For Use With/Related Products	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [x]	Features	Length - Threaded Portion Below Head
3M (TC) 3341-31BULK	4-40 Socket M2.5 Screw	Jackscrew Socket Slotted	0.4 in	10.16 mm	D-Sub Connectors MDR	0.4 in	10.16 mm
3M (TC) 3341-30 BULK	4-40 Screw 4-40 Socket	Jackscrew Socket Slotted	0.4 in	10.16 mm	D-Sub Connectors MDR	0.4 in	10.16 mm
3M (TC) 3341 JACKSOCKET (SCR)	4-40 Screw 4-40 Socket	Jackscrew Socket			D-Sub Connectors			7.87 mm	0.31 in
3M (TC) 3341-32BULK	4-40 Socket M2.5 Screw	Jackscrew Socket Slotted	0.5 in		D-Sub Connectors MDR			12.7 mm	0.5 in	12.7 mm
3M (TC) 3341-10BULK	M2.5 Screw M2.5 Socket	Jackscrew Socket Slotted	0.35 in		D-Sub Connectors MDR			8.9 mm	0.35 in	8.9 mm
3M (TC) 3341-2	4-40 Screw 4-40 Socket	Jackscrew Socket	0.3 in		D-Sub Connectors Standard			10.92 mm	0.43 in	7.62 mm	Hardware Included Lock Washer
3M (TC) 3341-17 BULK	4-40 Screw 4-40 Socket	Jackscrew Socket Slotted	0.35 in		D-Sub Connectors MDR			8.9 mm	0.35 in	8.9 mm
3M (TC) 3341-25	M2 Socket M2.5 Screw	Jackscrew Socket Slotted		10.41 mm	D-Sub Connectors MDR							0.41 in
3M (TC) 3341-5		Screws			3000 Series
3M (TC) 3341-16BULK	4-40 Screw 4-40 Socket	Jackscrew Socket Slotted	0.35 in		D-Sub Connectors MDR			8.9 mm	0.35 in	8.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew Socket For D-Sub Connectors, Standard
