140-506-210-011

Active

EDAC Inc.

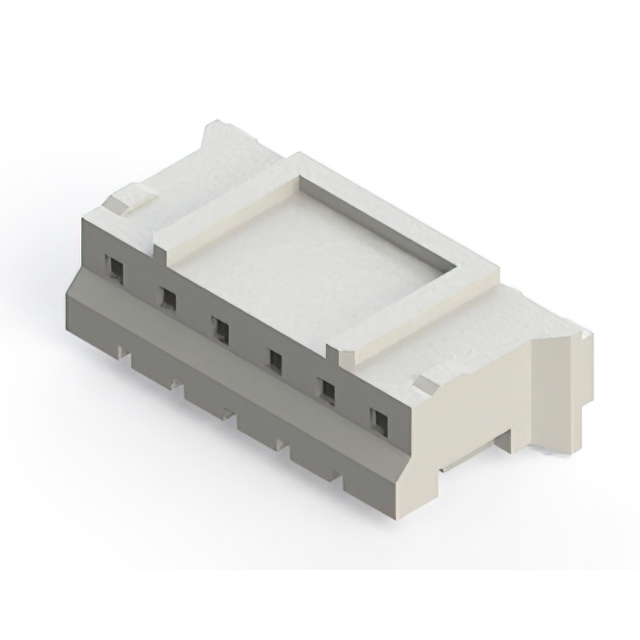

CONN RCPT HSG 6POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-506-210-011

Active

EDAC Inc.

CONN RCPT HSG 6POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-506-210-011	140-506 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle, Header
Contact Finish - Post	-	Tin
Contact Material	-	Brass
Contact Shape	-	Square
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket, Male Pin
Current Rating (Amps)	-	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Polarizing Key	Polarizing Key, Solder Retention
Insulation Color	-	Natural
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Height	-	0.197 - 0.24 in
Insulation Height	-	5 - 6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T, Liquid Crystal Polymer (LCP)
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Surface Mount, Right Angle, Surface Mount, Through Hole, Through Hole, Right Angle
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Positions Loaded	-	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Pitch - Mating	-	0.079 in
Pitch - Mating	-	2 mm
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Shrouding	-	Shrouded - 4 Wall
Style	-	Board to Cable/Wire
Termination	-	Solder, Kinked Pin, Solder
Voltage Rating	-	100 VAC

140-506 Series

CONN RCPT HSG 6POS 2.00MM

Part	Insulation Material	Note	Contact Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Color	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Contact Material	Style	Termination	Material Flammability Rating	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Current Rating (Amps)	Voltage Rating	Insulation Height	Insulation Height
EDAC Inc. 140-506-210-011	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Female Socket	Crimp	-25 °C	85 °C	Detent Lock	Free Hanging (In-Line)	Natural	6	Receptacle	0.079 in	2 mm	1	Polarizing Key
EDAC Inc. 140-506-417-060	Nylon 9T, Polyamide (PA9T)		Male Pin		-25 °C	85 °C	Detent Lock	Surface Mount, Right Angle		6	Header			1	Solder Retention	Brass	Board to Cable/Wire	Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square	5.51 mm	0.217 in	Shrouded - 4 Wall	2 A	100 VAC
EDAC Inc. 140-506-417-011	Liquid Crystal Polymer (LCP)		Male Pin		-40 °C	105 ░C	Detent Lock	Surface Mount		6	Header			1	Solder Retention	Brass	Board to Cable/Wire	Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square	5.51 mm	0.217 in	Shrouded - 4 Wall	2 A	100 VAC
EDAC Inc. 140-506-415-001	Polyamide (PA66), Nylon 6/6		Male Pin		-40 °C	105 ░C	Detent Lock	Through Hole		6	Header			1		Brass	Board to Cable/Wire	Kinked Pin, Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square			Shrouded - 4 Wall	2 A	100 VAC	0.24 in	6.1 mm
EDAC Inc. 140-506-415-101	Polyamide (PA66), Nylon 6/6		Male Pin		-40 °C	105 ░C	Detent Lock	Through Hole		6	Header			1		Brass	Board to Cable/Wire	Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square			Shrouded - 4 Wall	2 A	100 VAC	0.24 in	6.1 mm
EDAC Inc. 140-506-415-000	Polyamide (PA66), Nylon 6/6		Male Pin		-40 °C	105 ░C	Detent Lock	Through Hole, Right Angle		6	Header			1		Brass	Board to Cable/Wire	Kinked Pin, Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square			Shrouded - 4 Wall	2 A	100 VAC	0.197 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.06
		25	$ 0.05
		50	$ 0.04
		100	$ 0.04
		300	$ 0.04
		500	$ 0.03
		1000	$ 0.03
		2500	$ 0.03

Description

General part information

140-506 Series

6 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
