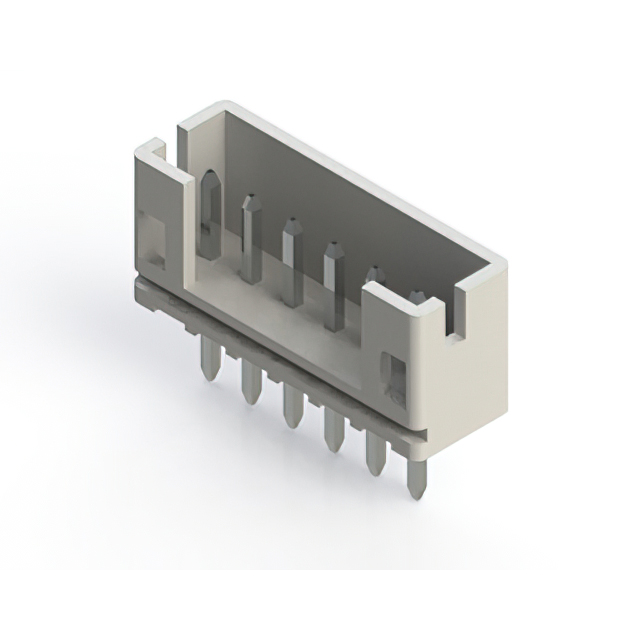

140-506-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 6 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-506-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 6 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.12

Description

General part information

140-506 Series

Connector Header Through Hole 6 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-506-415-101	140-506 Series

Color	-	Natural
Connector Type	Header	Receptacle, Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.197 - 0.24 in
Insulation Height	6.1 mm	5 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Free Hanging (In-Line), Surface Mount, Right Angle, Surface Mount, Through Hole, Through Hole, Right Angle
Note	-	Contacts Not Included
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-506 Series

CONN RCPT HSG 6POS 2.00MM

Part	Insulation Material	Note	Contact Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Color	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Contact Material	Style	Termination	Material Flammability Rating	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Current Rating (Amps)	Voltage Rating	Insulation Height	Insulation Height
EDAC Inc. 140-506-210-011	Polyamide (PA66), Nylon 6/6	Contacts Not Included	Female Socket	Crimp	-25 °C	85 °C	Detent Lock	Free Hanging (In-Line)	Natural	6	Receptacle	0.079 in	2 mm	1	Polarizing Key
EDAC Inc. 140-506-417-060	Nylon 9T, Polyamide (PA9T)		Male Pin		-25 °C	85 °C	Detent Lock	Surface Mount, Right Angle		6	Header			1	Solder Retention	Brass	Board to Cable/Wire	Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square	5.51 mm	0.217 in	Shrouded - 4 Wall	2 A	100 VAC
EDAC Inc. 140-506-417-011	Liquid Crystal Polymer (LCP)		Male Pin		-40 °C	105 ░C	Detent Lock	Surface Mount		6	Header			1	Solder Retention	Brass	Board to Cable/Wire	Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square	5.51 mm	0.217 in	Shrouded - 4 Wall	2 A	100 VAC
EDAC Inc. 140-506-415-001	Polyamide (PA66), Nylon 6/6		Male Pin		-40 °C	105 ░C	Detent Lock	Through Hole		6	Header			1		Brass	Board to Cable/Wire	Kinked Pin, Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square			Shrouded - 4 Wall	2 A	100 VAC	0.24 in	6.1 mm
EDAC Inc. 140-506-415-101	Polyamide (PA66), Nylon 6/6		Male Pin		-40 °C	105 ░C	Detent Lock	Through Hole		6	Header			1		Brass	Board to Cable/Wire	Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square			Shrouded - 4 Wall	2 A	100 VAC	0.24 in	6.1 mm
EDAC Inc. 140-506-415-000	Polyamide (PA66), Nylon 6/6		Male Pin		-40 °C	105 ░C	Detent Lock	Through Hole, Right Angle		6	Header			1		Brass	Board to Cable/Wire	Kinked Pin, Solder	UL94 V-0	Tin	Natural	All	0.079 in	2 mm	Square			Shrouded - 4 Wall	2 A	100 VAC	0.197 in	5 mm
