TMS320F28376SPZPT
ActiveTexas Instruments
C2000™ 32-BIT MCU WITH 400 MIPS, 1XCPU, 1XCLA, FPU, TMU, 512 KB FLASH, EMIF, 16B ADC
TMS320F28376SPZPT
ActiveTexas Instruments
C2000™ 32-BIT MCU WITH 400 MIPS, 1XCPU, 1XCLA, FPU, TMU, 512 KB FLASH, EMIF, 16B ADC
Description
General part information
TMS320 Series
The TMS320C672x is the next generation of Texas Instruments' C67x generation of high-performance 32-/64-bit floating-point digital signal processors. The TMS320C672x includes the TMS320C6727B, TMS320C6726B, TMS320C6722B, and TMS320C6720 devices.(1)
Enhanced C67x+ CPU. The C67x+ CPU is an enhanced version of the C67x CPU used on the C671x DSPs. It is compatible with the C67x CPU but offers significant improvements in speed, code density, and floating-point performance per clock cycle. At 350 MHz, the CPU is capable of a maximum performance of 2800 MIPS/2100 MFLOPS by executing up to eight instructions (six of which are floating-point instructions) in parallel each cycle. The CPU natively supports 32-bit fixed-point, 32-bit single-precision floating-point, and 64-bit double-precision floating-point arithmetic.
Efficient Memory System. The memory controller maps the large on-chip 256K-byte RAM and 384K-byte ROM as unified program/data memory. Development is simplified since there is no fixed division between program and data memory size as on some other devices.
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS320F28376SPZPT |
|---|---|
| A/D Channels | 20 count |
| A/D Resolution (bits) | 12 bit, 16 bit |
| Connectivity | UART, McBSP, USB, I2C, EMI, EBI, CANbus, SPI, uPP, USART, SCI |
| Core Configuration | Single-Core |
| Core Processor | C28x |
| Core Size (Bit Width) | 32 Bit |
| D/A Channels | 3 count |
| D/A Resolution (bits) | 12 bit |
| Mounting Type | Surface Mount |
| Number of I/O | 97 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Oscillator Type | Internal |

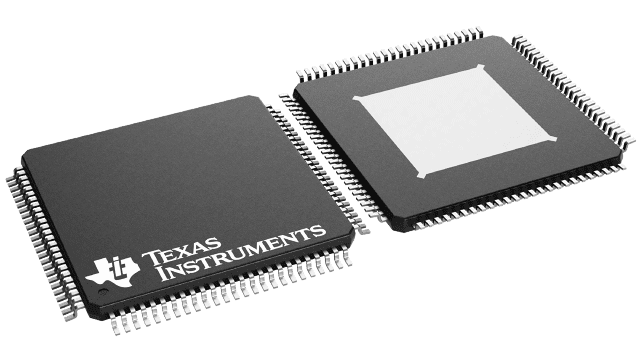

| Package / Case | 100-TQFP Exposed Pad |
| Package Length | 14 mm |
| Package Name | 100-HTQFP |
| Package Width | 14 mm |
| Peripherals | DMA, POR, WDT, PWM |
| Program Memory Depth | 256 K |
| Program Memory Size | 512 KB |
| Program Memory Type | FLASH |
| Program Memory Width | 16 |
| RAM Size Depth | 66 K |
| RAM Size Width | 16 bit |
| Speed | 200 MHz |
| Voltage - Supply (Vcc/Vdd) Maximum | 3.47 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 1.14 V |
