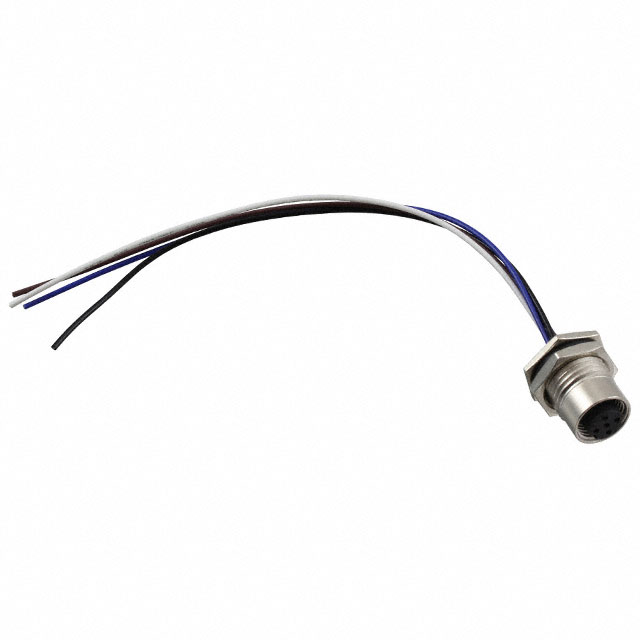

M12D-04PFFC-SF8B15
ActiveAmphenol LTW
CONN RCPT FML 4P WIR LEAD 0.49'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12D-04PFFC-SF8B15
ActiveAmphenol LTW
CONN RCPT FML 4P WIR LEAD 0.49'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12D-04PFFC-SF8B15 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.20 | |
| 10 | $ 8.60 | |||
| 25 | $ 7.77 | |||
| 50 | $ 7.21 | |||
| 100 | $ 6.70 | |||
| 250 | $ 6.10 | |||
| 500 | $ 5.69 | |||
| 1000 | $ 5.32 | |||
Description
General part information
M12D-04PFFC Series
4 Position Circular Connector Receptacle, Female Sockets Wire Leads
