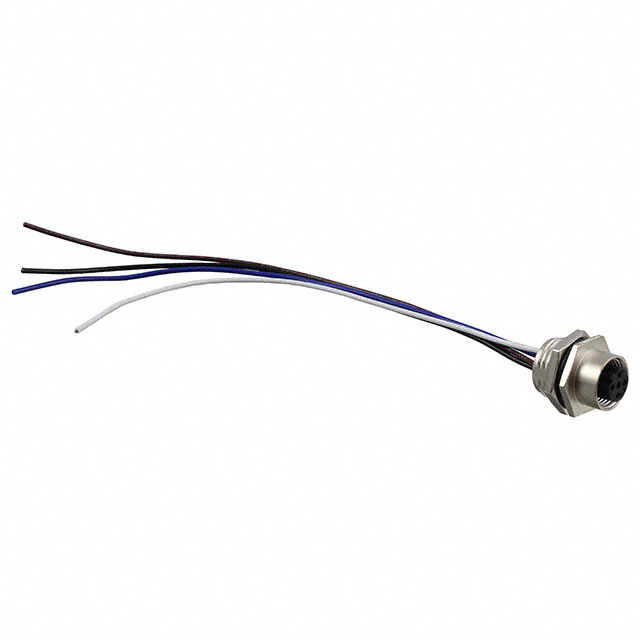

M12D-04PFFC-SH8B15
ActiveAmphenol LTW
CONN RCPT FML 4P WIR LEAD 0.49'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12D-04PFFC-SH8B15
ActiveAmphenol LTW
CONN RCPT FML 4P WIR LEAD 0.49'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12D-04PFFC-SH8B15 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Voltage Rating | 250 VAC |
M12D-04PFFC Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type | Insert Material | Primary Material | Voltage Rating | Ingress Protection | Mounting Feature | Color | Contact Finish - Mating | Shell Finish | Termination | Number of Positions | Shell Material | Orientation | Current Rating (Amps) | Shielding | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | -25 °C | 85 °C | Copper Alloy | Receptacle Female Sockets | Polyamide (PA) Nylon Glass Filled | Metal | 250 VAC | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Silver | Gold | Nickel | Wire Leads | 4 | Zinc Alloy | D | 4 A | Shielded | M12-4 |
Amphenol LTW | -25 °C | 85 °C | Copper Alloy | Receptacle Female Sockets | Polyamide (PA) Nylon Glass Filled | Metal | 250 VAC | IP68 - Dust Tight Waterproof | Bulkhead - Rear Side Nut | Silver | Gold | Nickel | Wire Leads | 4 | Zinc Alloy | D | 4 A | Shielded | M12-4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.57 | |
| 10 | $ 8.61 | |||
| 25 | $ 8.11 | |||
| 50 | $ 7.91 | |||
| 100 | $ 7.70 | |||
| 250 | $ 6.87 | |||
| 500 | $ 6.45 | |||
| 1000 | $ 5.70 | |||
Description
General part information
M12D-04PFFC Series
4 Position Circular Connector Receptacle, Female Sockets Wire Leads
