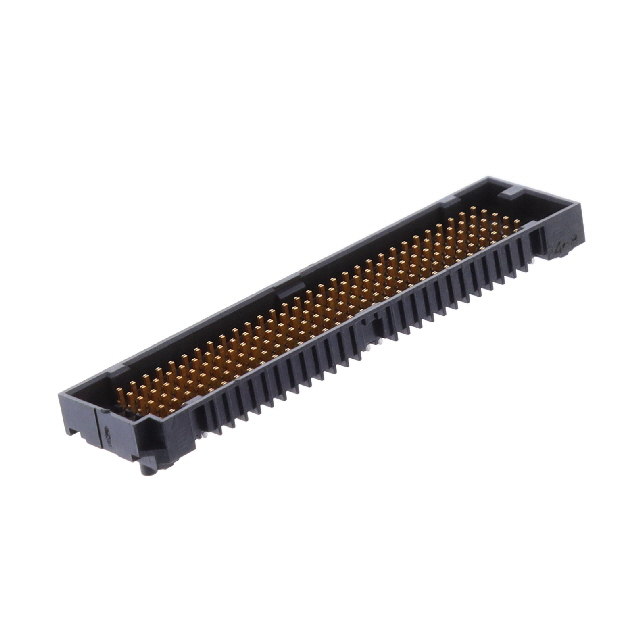

LPAM-30-01.5-L-06-2-K-TR

Active

Samtec Inc.

CONN ARRAY PLUG 180POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ARRAY PLUG 180POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Height Above Board
Samtec Inc. LPAM-30-01.0-L-06-1-K-TR	4 mm 4.5 mm	0.05 in	1.27 mm	Surface Mount	3.68 mm	0.145 in	Gold	Board Guide Pick and Place	Array Male Pins	180	10 Áin	0.25 Ám	6
Samtec Inc. LPAM-30-01.5-L-06-2-K-TR	4.5 mm 5 mm	0.05 in	1.27 mm	Surface Mount			Gold	Board Guide Pick and Place	Array Male Pins	180	10 Áin	0.25 Ám	6	0.165 "	4.2 mm
Samtec Inc. LPAM-30-01.0-L-08-2-K-TR	4 mm 4.5 mm	0.05 in	1.27 mm	Surface Mount	3.68 mm	0.145 in	Gold	Board Guide Pick and Place	Array Male Pins	240	10 Áin	0.25 Ám	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

180 Position Connector Array, Male Pins Surface Mount Gold
