LPAM-30-01.0-L-08-2-K-TR - LPAM-30-01.0-L-08-2-K-TR

LPAM-30-01.0-L-08-2-K-TR

Active
Samtec Inc.

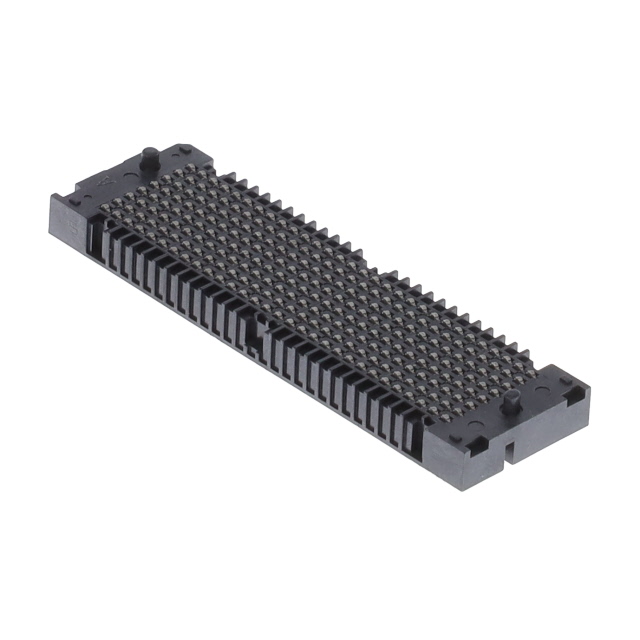

CONN OPEN PIN FIELD ARRAY M 240 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet.050" LP Array™ High-Speed High-Density Low Profile Open-Pin-Field Array, Terminal+2
LPAM-30-01.0-L-08-2-K-TR - LPAM-30-01.0-L-08-2-K-TR

LPAM-30-01.0-L-08-2-K-TR

Active
Samtec Inc.

CONN OPEN PIN FIELD ARRAY M 240 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet.050" LP Array™ High-Speed High-Density Low Profile Open-Pin-Field Array, Terminal+2

Technical Specifications

Parameters and characteristics for this part

SpecificationLPAM-30-01.0-L-08-2-K-TR
Connector TypeMale Pins, Array
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place, Board Guide
Height Above Board [z]3.68 mm
Height Above Board [z]0.145 in
Mated Stacking Heights4 mm, 4.5 mm
Mounting TypeSurface Mount
Number of Positions240
Number of Rows8
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 25.87
10$ 24.74
25$ 23.80
50$ 22.06
100$ 19.58
DigikeyCut Tape (CT) 1$ 23.40
10$ 22.16
25$ 21.32
50$ 20.80
100$ 16.98
Digi-Reel® 1$ 23.40
10$ 22.16
25$ 21.32
50$ 20.80
100$ 16.98
Tape & Reel (TR) 325$ 15.70
650$ 15.11

Description

General part information

LPAM-30 Series

240 Position Connector Array, Male Pins Surface Mount Gold
