206-859

Active

WAGO Corporation

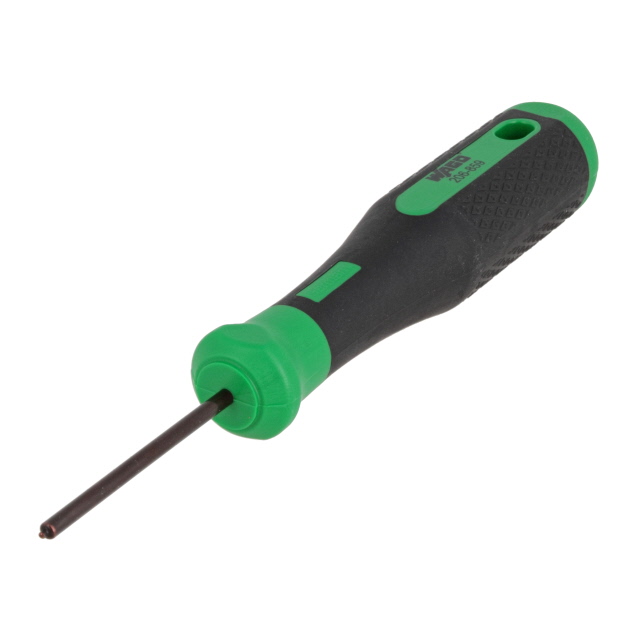

OPERATING TOOL, FOR 2060 SERIES SMD TERMINAL BLOCKS

Search across all available documentation for this part.

Active

WAGO Corporation

OPERATING TOOL, FOR 2060 SERIES SMD TERMINAL BLOCKS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	206-859	206 Series

For Use With/Related Products	2059 Series	2059 Series, Ferrules
Ratcheting	-	Ratchet
Tool Type	Operating Tool	Operating Tool, Hand Crimper
Wire Entry Location	-	Side Entry
Wire Gauge or Range - AWG	-	10 - 24 AWG
Wire Gauge or Range - AWG	-	6 - 12 AWG
Wire Gauge or Range - mm²	-	0.25 - 6 mm²
Wire Gauge or Range - mm²	-	4 - 16 mm²

OPERATING TOOL, FOR 2060 SERIES SMD TERMINAL BLOCKS

Part	Tool Type	For Use With/Related Products	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Entry Location	Ratcheting
WAGO Corporation 206-859	Operating Tool	2059 Series
WAGO Corporation 206-1204	Hand Crimper	Ferrules	24 AWG	12 AWG	0.25 mm²	4 mm²	Side Entry	Ratchet
WAGO Corporation 206-1216	Hand Crimper	Ferrules	10 AWG	6 AWG	6 mm²	16 mm²	Side Entry	Ratchet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Operating Tool 2059 Series

Technical documentation and resources

No documents available
