206-1216

Active

WAGO Corporation

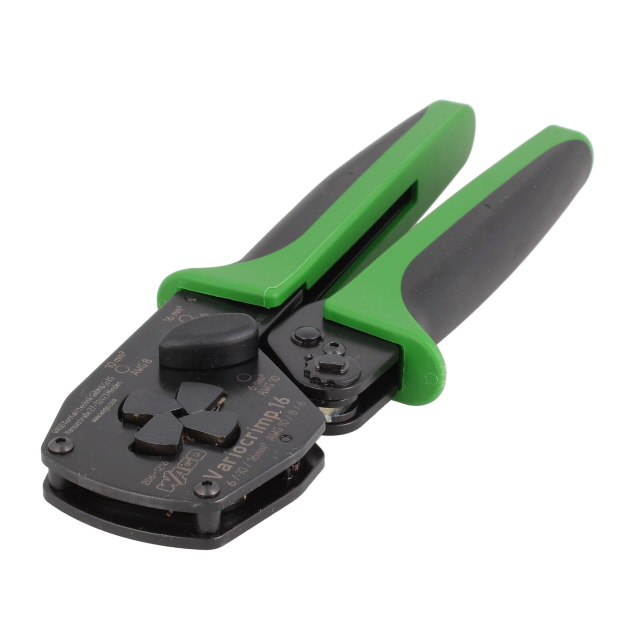

CRIMP TOOL, RATCHET, 10, 8, 6AWG INSULATED AND UNINSULATED CONTACTS, VARIOCRIMP 16 SERIES

Search across all available documentation for this part.

Active

WAGO Corporation

CRIMP TOOL, RATCHET, 10, 8, 6AWG INSULATED AND UNINSULATED CONTACTS, VARIOCRIMP 16 SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	206-1216	206 Series

For Use With/Related Products	Ferrules	2059 Series, Ferrules
Ratcheting	Ratchet	Ratchet
Tool Type	Hand Crimper	Operating Tool, Hand Crimper
Wire Entry Location	Side Entry	Side Entry
Wire Gauge or Range - AWG [Max]	10 AWG	10 - 24 AWG
Wire Gauge or Range - AWG [Min]	6 AWG	6 - 12 AWG
Wire Gauge or Range - mm² [Max]	16 mm²	4 - 16 mm²
Wire Gauge or Range - mm² [Min]	6 mm²	0.25 - 6 mm²

OPERATING TOOL, FOR 2060 SERIES SMD TERMINAL BLOCKS

Part	Tool Type	For Use With/Related Products	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Entry Location	Ratcheting
WAGO Corporation 206-859	Operating Tool	2059 Series
WAGO Corporation 206-1204	Hand Crimper	Ferrules	24 AWG	12 AWG	0.25 mm²	4 mm²	Side Entry	Ratchet
WAGO Corporation 206-1216	Hand Crimper	Ferrules	10 AWG	6 AWG	6 mm²	16 mm²	Side Entry	Ratchet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Ferrules
