17-400260

Active

Amphenol CONEC

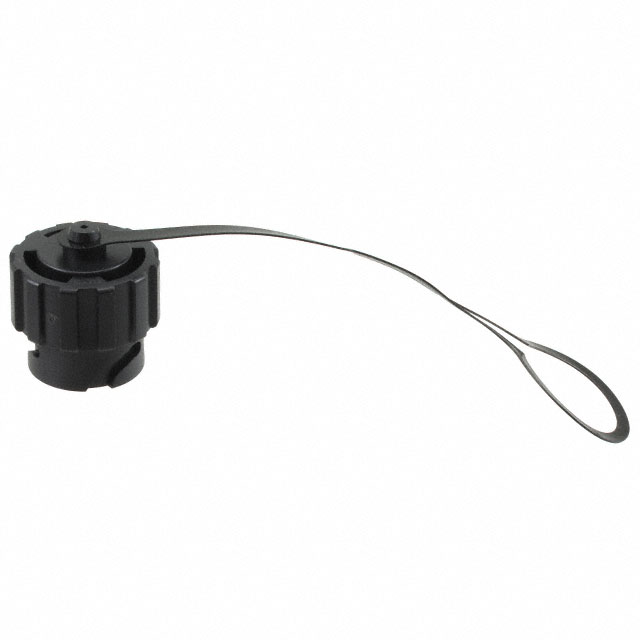

CONN PROTECTIVE COVER BLACK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PROTECTIVE COVER BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	17-400260

Accessory Type	Cap (Cover), Protective
Color	Black
Features	Waterproof, Dust Tight, Contains Strap with Ring
For Use With/Related Products	Male Receptacle Connector, 3Pos, Male Receptacle Connector, 2Pos
Material	Polybutylene Terephthalate (PBT)

Part	Contact Type	Termination Finish	Contact Termination	Contact Material	Contact Finish Thickness	Contact Finish	Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Ingress Protection	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Orientation	Termination	Current Rating (Amps)	Shell Material	Material Flammability Rating	Shielding	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Backshell Material, Plating	Insert Material	Primary Material	Material	Accessory Type	Features	For Use With/Related Products
Amphenol CONEC 17-400233	Pin	Tin	Crimp	Copper Alloy	Flash	Gold	Power
Amphenol CONEC 17-400293				Copper Alloy				3	1	2	IP67 - Dust Tight Waterproof	Gold	Automation Control Industrial Telecommunications	Flash	Keyed	Crimp	20 A	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Unshielded	Bayonet Lock	Free Hanging (In-Line)	100 °C	-40 °C	250 VAC	Male Pins Plug	Black	16 mm	0.354 in	0.63 in	9 mm	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Plastic
Amphenol CONEC 17-400260																											Black								Polybutylene Terephthalate (PBT)	Cap (Cover) Protective	Contains Strap with Ring Dust Tight Waterproof	Male Receptacle Connector 2Pos Male Receptacle Connector 3Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover), Protective Black
