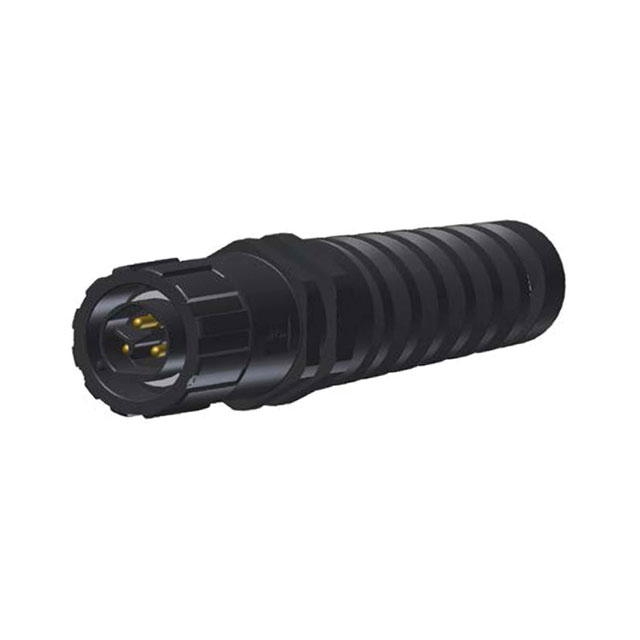

17-400293

Active

Amphenol CONEC

CONN PLUG MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17-400293

Applications	Telecommunications, Automation Control, Industrial
Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [diameter]	16 mm
Cable Opening [Max] [diameter]	0.63 in
Cable Opening [Min] [diameter]	0.354 in
Cable Opening [Min] [diameter]	9 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 VAC

Part	Contact Type	Termination Finish	Contact Termination	Contact Material	Contact Finish Thickness	Contact Finish	Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Ingress Protection	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Orientation	Termination	Current Rating (Amps)	Shell Material	Material Flammability Rating	Shielding	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Backshell Material, Plating	Insert Material	Primary Material	Material	Accessory Type	Features	For Use With/Related Products
Amphenol CONEC 17-400233	Pin	Tin	Crimp	Copper Alloy	Flash	Gold	Power
Amphenol CONEC 17-400293				Copper Alloy				3	1	2	IP67 - Dust Tight Waterproof	Gold	Automation Control Industrial Telecommunications	Flash	Keyed	Crimp	20 A	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Unshielded	Bayonet Lock	Free Hanging (In-Line)	100 °C	-40 °C	250 VAC	Male Pins Plug	Black	16 mm	0.354 in	0.63 in	9 mm	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Plastic
Amphenol CONEC 17-400260																											Black								Polybutylene Terephthalate (PBT)	Cap (Cover) Protective	Contains Strap with Ring Dust Tight Waterproof	Male Receptacle Connector 2Pos Male Receptacle Connector 3Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 24.59

General part information

3 (2 Power + PE) Position Circular Connector Plug, Male Pins Crimp
