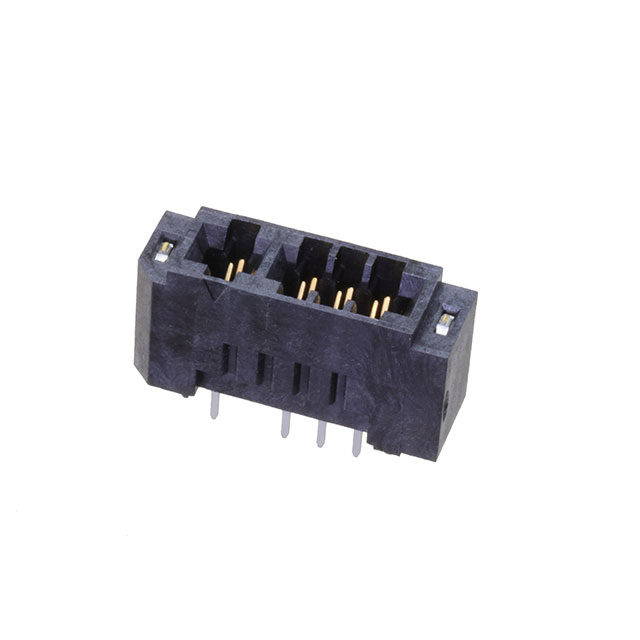

MEC2-05-01-L-TH1-WT

Active

Samtec Inc.

CONN EDGE DUAL FMALE 10POS 0.079

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FMALE 10POS 0.079

Technical Specifications

Parameters and characteristics for this part

Part	Card Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	Color	Gender	Read Out	Mounting Type	Material - Insulation	Card Thickness	Card Thickness	Contact Type	Termination	Number of Positions
Samtec Inc. MEC2-05-02-L-DV-NP-WT	Non Specified - Dual Edge	2	0.079 in	2 mm	Gold	-55 °C	125 °C	Beryllium Copper	Board Guide Solder Retention	10 Áin	0.25 Ám	Natural	Female	Dual	Surface Mount	Liquid Crystal Polymer (LCP)	0.093 in	2.36 mm	Cantilever	Solder	10
Samtec Inc. MEC2-05-01-L-TH1-WT	Non Specified - Dual Edge	2	0.079 in	2 mm	Gold	-55 °C	125 °C	Beryllium Copper	Board Guide	10 Áin	0.25 Ám	Black	Female	Dual	Through Hole	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Cantilever	Solder	10
Samtec Inc. MEC2-05-01-L-DV-K-TR	Non Specified - Dual Edge	2	0.079 in	2 mm	Gold	-55 °C	125 °C	Beryllium Copper	Board Guide Pick and Place	10 Áin	0.25 Ám	Black	Female	Dual	Surface Mount	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Cantilever	Solder	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Female Connector Non Specified - Dual Edge Gold 0.079" (2.00mm) Black
