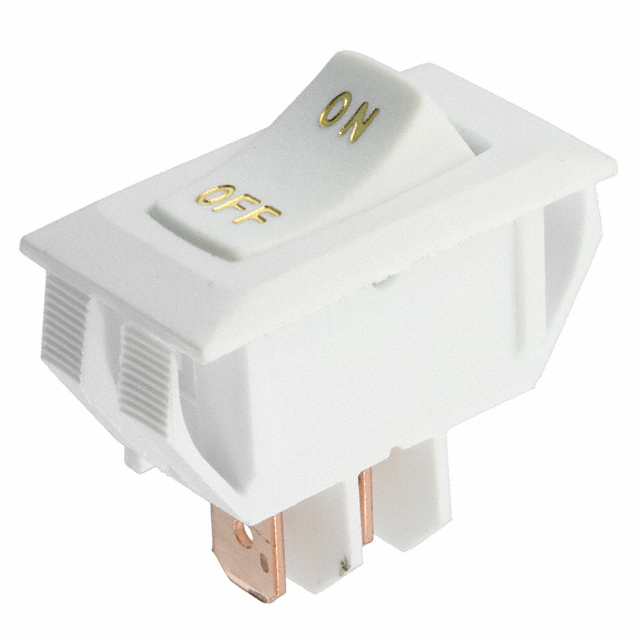

Specification	GRS-2011-2055

Actuator Marking	Vertical, ON OFF
Actuator Type	Concave (Curved)
Circuit	SPST
Color - Actuator/Cap	White
Current Rating	16 A
Features	Terminal Barriers
Mounting Type	Panel Mount, Snap-In
Panel Cutout Length	28.58 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	13.97 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V

GRS-2011 Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Quick Connect Size (0.250")	Termination Style	Mounting Type	Voltage Rating - AC	Circuit	Current Rating	Actuator Type	Actuator Marking	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Color - Actuator/Cap	Features
CW Industries GRS-2011-2020	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	13 A	Concave (Curved)	ON OFF Vertical	28.58 mm	Rectangular	13.97 mm	On-Off	-20 °C	105 °C	Black
CW Industries GRS-2011-2600	100000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	16 A	Concave (Curved)	No Marking	28.58 mm	Rectangular	13.97 mm	On-Off	-20 °C	105 °C	Black
CW Industries GRS-2011-2004	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	16 A	Concave (Curved)	No Marking	28.58 mm	Rectangular	13.97 mm	On-Off	-20 °C	105 °C	Black	Terminal Barriers
CW Industries GRS-2011-2068	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	8 A	Concave (Curved)	O	28.58 mm	Rectangular	13.97 mm	On-Off	-20 °C	105 °C	White
CW Industries GRS-2011B-3003	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST-NO	13 A	Concave (Curved)	No Marking	27.23 mm	Rectangular	12.19 mm	Off-Mom	-20 °C	105 °C	Black	Terminal Barriers
CW Industries GRS-2011-3004	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	16 A	Concave (Curved)	No Marking	27.23 mm	Rectangular	12.19 mm	On-Off	-20 °C	105 °C	Black	Terminal Barriers
CW Industries GRS-2011-2080	100000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	16 A	Concave (Curved)	O	28.58 mm	Rectangular	13.97 mm	On-Off	-20 °C	105 °C	Black
CW Industries GRS-2011C-3002	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST-NC	13 A	Concave (Curved)	No Marking	27.23 mm	Rectangular	12.19 mm	On-Mom	-20 °C	105 °C	Black	Polarized
CW Industries GRS-2011-3014	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	16 A	Concave (Curved)	No Marking	27.23 mm	Rectangular	12.19 mm	On-Off	-20 °C	105 °C	Black	Terminal Barriers
CW Industries GRS-2011-2053	25000 Cycles	25000	0.25 in	Quick Connect	Panel Mount Snap-In	125 V	SPST	13 A	Concave (Curved)	HI LO	28.58 mm	Rectangular	13.97 mm	On-Off	-20 °C	105 °C	Black
