857-088-440-201

Active

EDAC Inc.

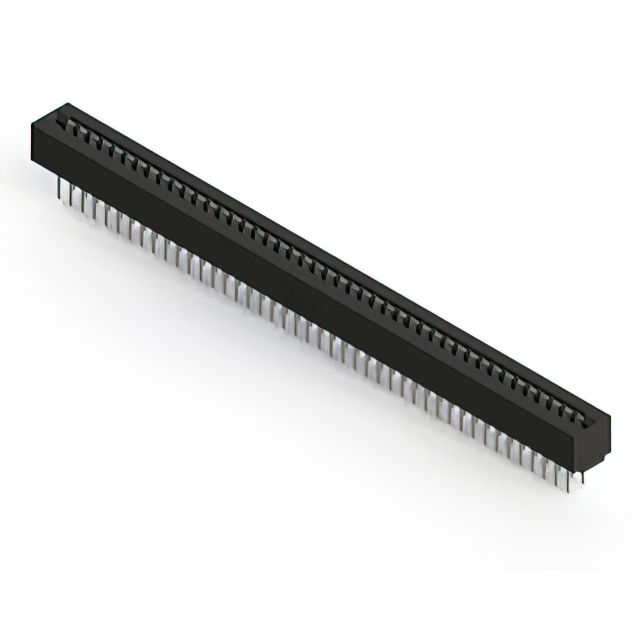

CONN EDGE DUAL FMALE 88POS 0.156

857-088-440-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

857-088 Series

88 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	857-088-440-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	88, 44
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

857-088 Series

...

Part	Number of Rows	Read Out	Pitch	Number of Positions	Color	Contact Finish	Mounting Type	Contact Material	Gender	Operating Temperature (Max)	Operating Temperature (Min)	Card Type	Card Thickness (Min)	Card Thickness (Max)	Contact Type	Flange Feature Diameter	Flange Feature	Termination	Material - Insulation	Termination Rows	Contact Finish Thickness	Features
EDAC Inc. 857-088-400-202	2	Dual	0.156 in	44 88	Black	Tin	Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows	0.128 in	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-088-459-203	2	Single	0.156 in	44 88	Black	Tin	Right Angle Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows	0.116 in	Floating Bobbin Flush Mount	Solder	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-088-440-201	2	Dual	0.156 in	44 88	Black	Tin	Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows			Wire Wrap	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 857-088-540-208	2	Dual	0.156 in	44 88	Black	Gold	Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Polyphenylene Sulfide PPS	2 rows	10 Ąin
EDAC Inc. 857-088-540-203	2	Dual	0.156 in	44 88	Black	Gold	Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows	0.116 in	Floating Bobbin Flush Mount	Wire Wrap	Polyphenylene Sulfide PPS	2 rows	10 Ąin
EDAC Inc. 857-088-559-207	2	Single	0.156 in	44 88	Black	Gold	Right Angle Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows		Flush Mount M3 Threaded Insert Top Opening	Solder	Polyphenylene Sulfide PPS	2 rows	10 Ąin
EDAC Inc. 857-088-520-212	2	Dual	0.156 in	44 88	Black	Gold	Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows	0.128 in	Side Mount Opening Unthreaded	Solder	Polyphenylene Sulfide PPS	2 rows	10 Ąin
EDAC Inc. 857-088-556-207	2	Dual	0.156 in	44 88	Black	Gold	Board Edge Straddle Mount	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows		Flush Mount M3 Threaded Insert Top Opening	Solder	Polyphenylene Sulfide PPS	2 rows	10 Ąin	Card Extender
EDAC Inc. 857-088-556-208	2	Dual	0.156 in	44 88	Black	Gold	Board Edge Straddle Mount	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening	Solder	Polyphenylene Sulfide PPS	2 rows	10 Ąin	Card Extender
EDAC Inc. 857-088-442-202	2	Dual	0.156 in	44 88	Black	Tin	Through Hole	Copper Alloy	Female	125 °C	-40 °C	Dual Edge Non Specified	0.054 in	0.07 in	Semi Bellows	0.128 in	Flush Mount Top Opening Unthreaded	Wire Wrap	Polyphenylene Sulfide PPS	2 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

857-088-440-201 | Datasheet
