857-088-520-212

Active

EDAC Inc.

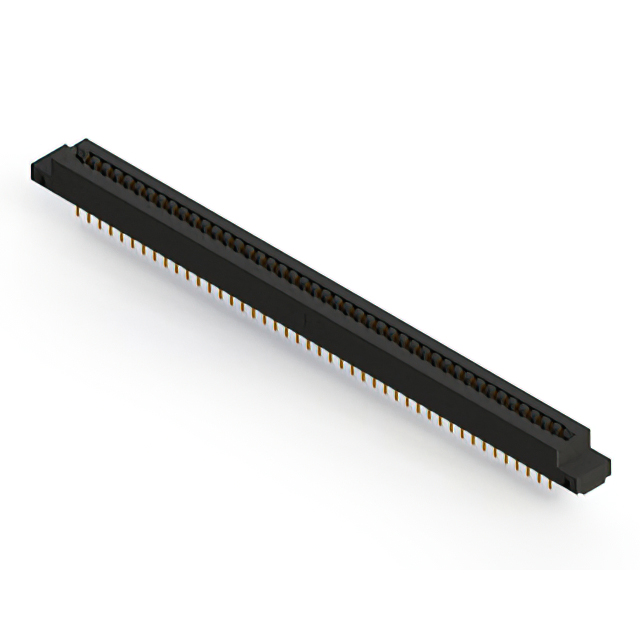

CONN EDGE DUAL FMALE 88POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-088-520-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-088-520-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	88
Number of Positions/Bay/Row [custom]	44
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-088 Series

...

Part	Contact Material	Contact Finish	Number of Positions	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Gender	Material - Insulation	Number of Rows	Color	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Mounting Type	Card Type	Number of Positions/Bay/Row [custom]	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Features
EDAC Inc. 857-088-400-202	Copper Alloy	Tin	88	Semi Bellows	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Through Hole	Non Specified - Dual Edge	44	2
EDAC Inc. 857-088-459-203	Copper Alloy	Tin	88	Semi Bellows	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Female	Polyphenylene Sulfide (PPS)	2	Black	Single	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Through Hole Right Angle	Non Specified - Dual Edge	44	2
EDAC Inc. 857-088-440-201	Copper Alloy	Tin	88	Semi Bellows				Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Through Hole	Non Specified - Dual Edge	44	2
EDAC Inc. 857-088-540-208	Copper Alloy	Gold	88	Semi Bellows			4-40 Flush Mount Threaded Insert Top Opening	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Through Hole	Non Specified - Dual Edge	44	2	10 Áin	0.25 Ám
EDAC Inc. 857-088-540-203	Copper Alloy	Gold	88	Semi Bellows	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Through Hole	Non Specified - Dual Edge	44	2	10 Áin	0.25 Ám
EDAC Inc. 857-088-559-207	Copper Alloy	Gold	88	Semi Bellows			Flush Mount M3 Threaded Insert Top Opening	Female	Polyphenylene Sulfide (PPS)	2	Black	Single	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Through Hole Right Angle	Non Specified - Dual Edge	44	2	10 Áin	0.25 Ám
EDAC Inc. 857-088-520-212	Copper Alloy	Gold	88	Semi Bellows			Side Mount Opening Unthreaded	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Through Hole	Non Specified - Dual Edge	44	2	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-088-540-212	Copper Alloy	Gold	88	Semi Bellows			Side Mount Opening Unthreaded	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Through Hole	Non Specified - Dual Edge	44	2	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-088-556-208	Copper Alloy	Gold	88	Semi Bellows			4-40 Flush Mount Threaded Insert Top Opening	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Board Edge Straddle Mount	Non Specified - Dual Edge	44	2	10 Áin	0.25 Ám			Card Extender
EDAC Inc. 857-088-442-202	Copper Alloy	Tin	88	Semi Bellows	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Polyphenylene Sulfide (PPS)	2	Black	Dual	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Through Hole	Non Specified - Dual Edge	44	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 129.43

Description

General part information

857-088 Series

88 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
