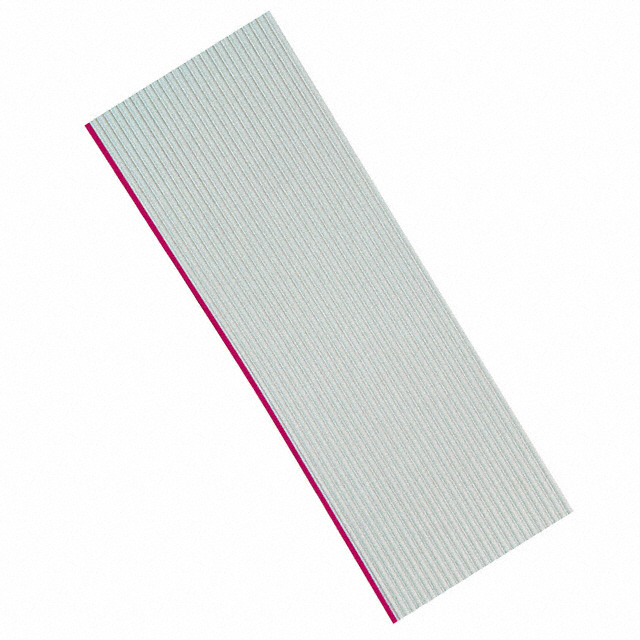

AWG28-26/G/300

Active

Assmann WSW Components

CBL RIBN 26COND 0.05 GRAY FOOT

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL RIBN 26COND 0.05 GRAY FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-26/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	91.44 m
Length	300 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Number of Conductors	26
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	1.3 "
Ribbon Width	33.02 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Voltage	Ratings	Cable Type	Shielding	Jacket Color	Spool Size	Spool Size	First Conductor Mark	Number of Conductors	Length	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Insulation Resistance	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Ribbon Width	Ribbon Width	Wire Gauge	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Length [x]	Length [x]	Operating Temperature
Assmann WSW Components AWG28-26/G-1/300	300 V	UL Style 2651	Flat Cable	Unshielded	Gray	300 ft	91.44 m	Red	26	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned	105 ░C	-10 °C	1.024 in	26.01 mm	28 AWG	0.039 in	1 mm	7	36 AWG
Assmann WSW Components AWG28-26/G/300	300 V	UL Style 2651	Flat Cable	Unshielded	Gray	300 ft	91.44 m	Red	26	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned	105 ░C	-10 °C	1.3 "	33.02 mm	28 AWG	0.05 in	1.27 mm	7	36 AWG	91.44 m	300 ft	10 ft 100 ft	3.05 m 30.48 m
Assmann WSW Components AWG28-26/F-1/300	300 V	UL Style 2651	Flat Cable	Unshielded	Multiple	300 ft	91.44 m		26	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned	105 ░C	-10 °C	1.024 in	26.01 mm	28 AWG	0.039 in	1 mm	7	36 AWG	91.44 m	300 ft	10 ft	3.05 m
Assmann WSW Components AWG28-26/F/300	300 V	UL Style 2651	Flat Cable	Unshielded	Multiple			Red	26		Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned			1.3 "	33.02 mm	28 AWG	0.05 in	1.27 mm	7	36 AWG	7.62 m 15.24 m	25 ft 50 ft	10 ft	3.05 m	105 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 26 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity
