AWG28-26/F/300

Unknown

Assmann WSW Components

CBL RIBN 26COND 0.05 MULTI 10'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 26COND 0.05 MULTI 10'

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Ratings	Cable Type	Shielding	Jacket Color	Spool Size	Spool Size	First Conductor Mark	Number of Conductors	Length	Jacket (Insulation) Material	Ribbon Thickness	Ribbon Thickness	Insulation Resistance	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Ribbon Width	Ribbon Width	Wire Gauge	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Length [x]	Length [x]	Operating Temperature
Assmann WSW Components AWG28-26/G-1/300	300 V	UL Style 2651	Flat Cable	Unshielded	Gray	300 ft	91.44 m	Red	26	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned	105 ░C	-10 °C	1.024 in	26.01 mm	28 AWG	0.039 in	1 mm	7	36 AWG
Assmann WSW Components AWG28-26/G/300	300 V	UL Style 2651	Flat Cable	Unshielded	Gray	300 ft	91.44 m	Red	26	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned	105 ░C	-10 °C	1.3 "	33.02 mm	28 AWG	0.05 in	1.27 mm	7	36 AWG	91.44 m	300 ft	10 ft 100 ft	3.05 m 30.48 m
Assmann WSW Components AWG28-26/F-1/300	300 V	UL Style 2651	Flat Cable	Unshielded	Multiple	300 ft	91.44 m		26	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned	105 ░C	-10 °C	1.024 in	26.01 mm	28 AWG	0.039 in	1 mm	7	36 AWG	91.44 m	300 ft	10 ft	3.05 m
Assmann WSW Components AWG28-26/F/300	300 V	UL Style 2651	Flat Cable	Unshielded	Multiple			Red	26		Poly-Vinyl Chloride (PVC)	0.89 mm	0.035 in	100 MOhms	Copper Tinned			1.3 "	33.02 mm	28 AWG	0.05 in	1.27 mm	7	36 AWG	7.62 m 15.24 m	25 ft 50 ft	10 ft	3.05 m	105 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

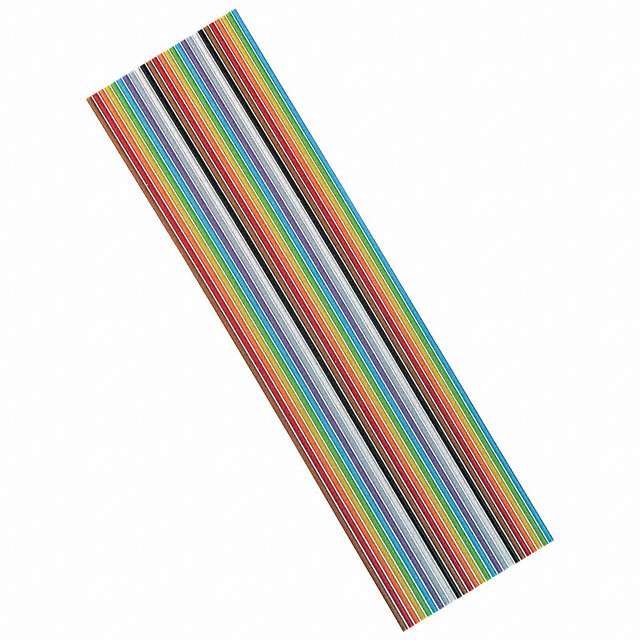

Flat Ribbon Cable Multiple 26 Conductors 0.050" (1.27mm) Flat Cable 10.0' (3.05m)
