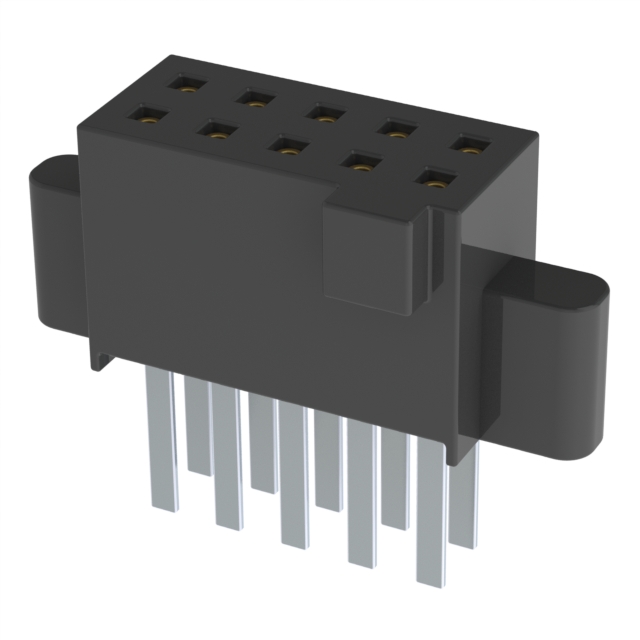

SFM-105-T1-F-D-K-TR

Active

Samtec Inc.

CONN RCPT 10POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFM-105-T1-F-D-K-TR

Active

Samtec Inc.

CONN RCPT 10POS 0.05 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-105-T1-F-D-K-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	7.8 mm, 9.73 mm, 11.48 mm, 7.95 mm, 11.63 mm, 9.58 mm, 6.02 mm, 6.17 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-130 Series

Headers & Wire Housings High-Reliability Tiger Eye Socket Strips, .050" Pitch

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Features	Insulation Material	Material Flammability Rating	Contact Material	Number of Positions	Contact Finish - Mating	Contact Type	Contact Shape	Fastening Type	Style	Number of Positions Loaded	Contact Finish - Post	Current Rating (Amps)	Connector Type	Voltage Rating	Mated Stacking Heights	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post
Samtec Inc. SFM-125-02-L-D-A-N	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Board Guide	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	50	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	10 çin	0.25 çm
Samtec Inc. SFM-135-L2-L-D-K-TR	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	70	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	10 çin	0.25 çm
Samtec Inc. SFM-105-L2-SM-D-P-TR	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SFM-140-L1-S-D-LC-P	-55 °C	125 °C	Through Hole	Solder	Black	0.05 in	1.27 mm	0.18 "	4.57 mm	Board Lock Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	80	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.12 in	3.05 mm
Samtec Inc. SFM-105-L2-H-D-LC	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm		Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Gold	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám			3 µin	0.076 µm
Samtec Inc. SFM-130-02-H-D	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm		Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	60	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Gold	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám			3 µin	0.076 µm
Samtec Inc. SFM-105-02-S-D-N-P	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SFM-105-T1-F-D-K-TR	-55 °C	125 °C	Through Hole	Solder	Black	0.05 in	1.27 mm	0.18 "	4.57 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	2	0.05 in	1.27 mm	3 µin	0.076 µm	0.12 in	3.05 mm
Samtec Inc. SFM-140-03-S-D-P	-55 °C	125 °C	Through Hole	Solder	Black	0.05 in	1.27 mm	0.18 "	4.57 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	80	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.075 in				1.91 mm
Samtec Inc. SFM-125-02-F-D-A-K	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Board Guide Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	50	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	125	$ 1.08

Description

General part information

SFM-130 Series

Headers & Wire Housings High-Reliability Tiger Eye Socket Strips, .050" Pitch
