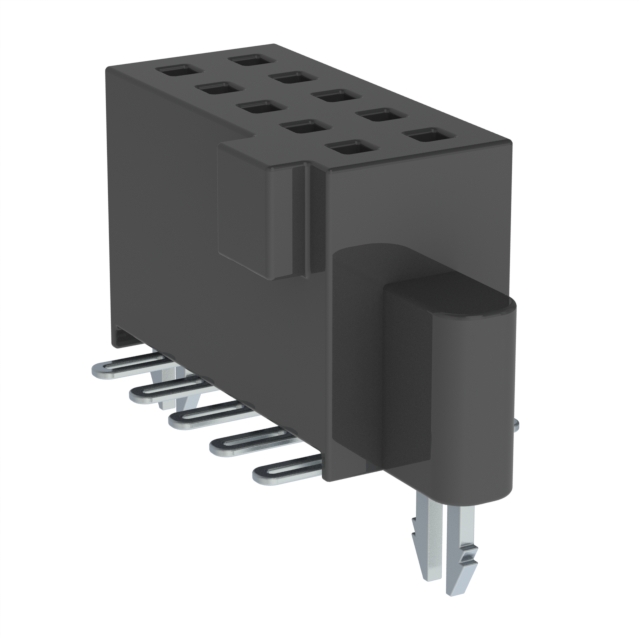

SFM-105-L2-H-D-LC

Active

Samtec Inc.

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFM-105-L2-H-D-LC

Active

Samtec Inc.

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-105-L2-H-D-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	11.76 mm, 6.3 mm, 11.61 mm, 8.08 mm, 6.15 mm, 7.92 mm, 9.86 mm, 9.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-130 Series

Headers & Wire Housings High-Reliability Tiger Eye Socket Strips, .050" Pitch

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Features	Insulation Material	Material Flammability Rating	Contact Material	Number of Positions	Contact Finish - Mating	Contact Type	Contact Shape	Fastening Type	Style	Number of Positions Loaded	Contact Finish - Post	Current Rating (Amps)	Connector Type	Voltage Rating	Mated Stacking Heights	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post
Samtec Inc. SFM-125-02-L-D-A-N	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Board Guide	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	50	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	10 çin	0.25 çm
Samtec Inc. SFM-135-L2-L-D-K-TR	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	70	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	10 çin	0.25 çm
Samtec Inc. SFM-105-L2-SM-D-P-TR	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SFM-140-L1-S-D-LC-P	-55 °C	125 °C	Through Hole	Solder	Black	0.05 in	1.27 mm	0.18 "	4.57 mm	Board Lock Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	80	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.12 in	3.05 mm
Samtec Inc. SFM-105-L2-H-D-LC	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm		Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Gold	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám			3 µin	0.076 µm
Samtec Inc. SFM-130-02-H-D	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm		Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	60	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Gold	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám			3 µin	0.076 µm
Samtec Inc. SFM-105-02-S-D-N-P	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SFM-105-T1-F-D-K-TR	-55 °C	125 °C	Through Hole	Solder	Black	0.05 in	1.27 mm	0.18 "	4.57 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	10	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	2	0.05 in	1.27 mm	3 µin	0.076 µm	0.12 in	3.05 mm
Samtec Inc. SFM-140-03-S-D-P	-55 °C	125 °C	Through Hole	Solder	Black	0.05 in	1.27 mm	0.18 "	4.57 mm	Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	80	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	2	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.075 in				1.91 mm
Samtec Inc. SFM-125-02-F-D-A-K	-55 °C	125 °C	Surface Mount	Solder	Black	0.05 in	1.27 mm	0.185 in	4.7 mm	Board Guide Pick and Place	Liquid Crystal Polymer (LCP)	UL94 V-0	Beryllium Copper	50	Gold	Female Socket	Square	Push-Pull	Board to Board Cable	All	Tin	3.2 A	Receptacle	250 VAC	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	2	0.05 in	1.27 mm	3 µin	0.076 µm
