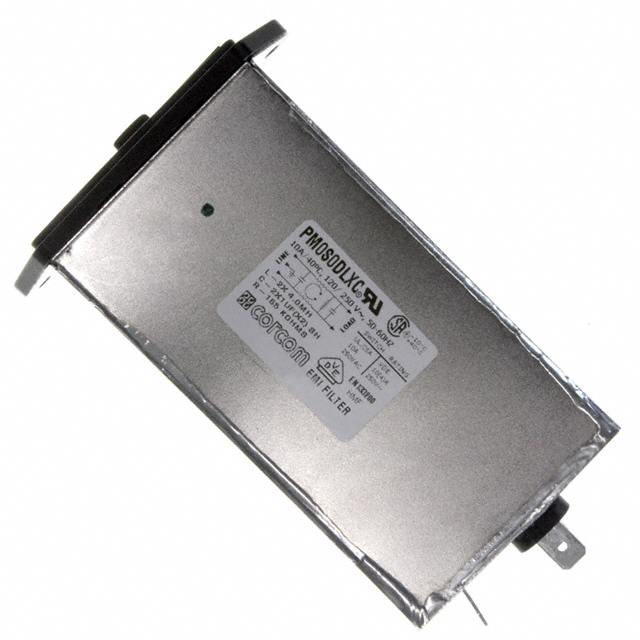

2-1609109-5

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart

2-1609109-5

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.14

Description

General part information

1609109 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1609109-5	1609109 Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	6 - 10 A
Current Rating - Filter	10 A	6 - 10 A
Features	Shielded	Conversion Clip, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	55.91 mm	55.91 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	-	120 VAC
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

1609109 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Termination	Termination	Termination	Approval Agency	Connector Type	Mounting Type	Voltage Rating - Appliance Inlet	Switch Features	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Features	Current Rating - Filter	Connector Style	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]
TE Connectivity Corcom Filters 3-1609109-0	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC	Switch On-Off	Fuse Holder	6 A	Conversion Clip, Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-8	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder	6 A	Conversion Clip, Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-7	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder, Twin Fused	6 A	Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 1-1609109-9	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC	Switch On-Off	Fuse Holder, Twin Fused	6 A	Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-5	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount		Switch On-Off	Fuse Holder, Twin Fused	10 A	Shielded	10 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm	250 VAC	120 VAC
TE Connectivity Corcom Filters 2-1609109-0	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder	6 A	Conversion Clip, Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 3-1609109-4	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC	Switch On-Off	Fuse Holder	10 A	Conversion Clip, Shielded	10 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-4	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder	10 A	Conversion Clip, Shielded	10 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
