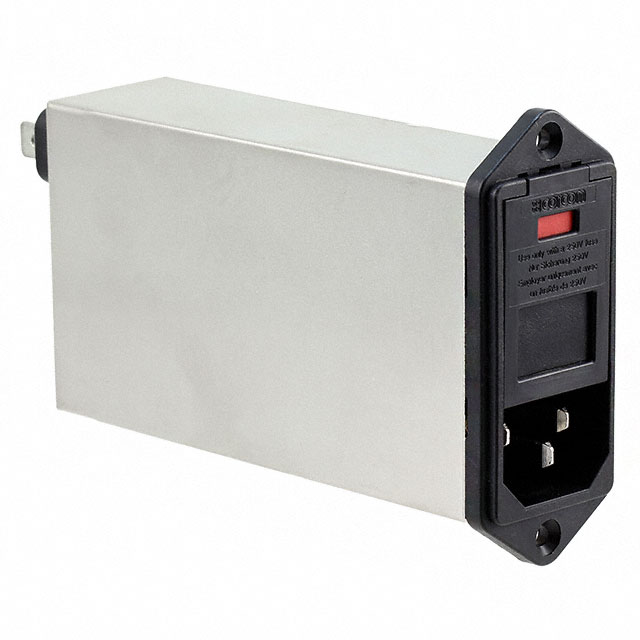

2-1609109-7

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

2-1609109-7

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1609109-7	1609109 Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	6 - 10 A
Current Rating - Filter	6 A	6 - 10 A
Features	Shielded	Conversion Clip, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	55.91 mm	55.91 mm
Switch Features	-	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - Appliance Inlet	-	120 VAC

1609109 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Termination	Termination	Termination	Approval Agency	Connector Type	Mounting Type	Voltage Rating - Appliance Inlet	Switch Features	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Features	Current Rating - Filter	Connector Style	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]
TE Connectivity Corcom Filters 3-1609109-0	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC	Switch On-Off	Fuse Holder	6 A	Conversion Clip, Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-8	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder	6 A	Conversion Clip, Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-7	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder, Twin Fused	6 A	Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 1-1609109-9	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC	Switch On-Off	Fuse Holder, Twin Fused	6 A	Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-5	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount		Switch On-Off	Fuse Holder, Twin Fused	10 A	Shielded	10 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm	250 VAC	120 VAC
TE Connectivity Corcom Filters 2-1609109-0	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder	6 A	Conversion Clip, Shielded	6 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 3-1609109-4	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC	Switch On-Off	Fuse Holder	10 A	Conversion Clip, Shielded	10 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm
TE Connectivity Corcom Filters 2-1609109-4	0.25 in	6.3 mm	Quick Connect	CSA, UL, VDE	Receptacle, Male Blades - Module	Flange, Panel Mount	120 VAC		Fuse Holder	10 A	Conversion Clip, Shielded	10 A	IEC 320-C14	Filtered (EMI, RFI) - Commercial	55.91 mm	28.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 48.99

Description

General part information

1609109 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
