Connectors, Interconnects
1-794406-0
ActiveTE Connectivity Raychem Cable Protection
CONNECTOR ACCESSORY, 0.079IN MIN CABLE DIA, 0.126IN MAX CABLE DIA, CONTACT, BRASS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-794406-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.73 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 4500 | $ 0.47 | ||
| 9000 | $ 0.45 | |||
| 13500 | $ 0.43 | |||
| 22500 | $ 0.42 | |||
Description
General part information
794406 Series

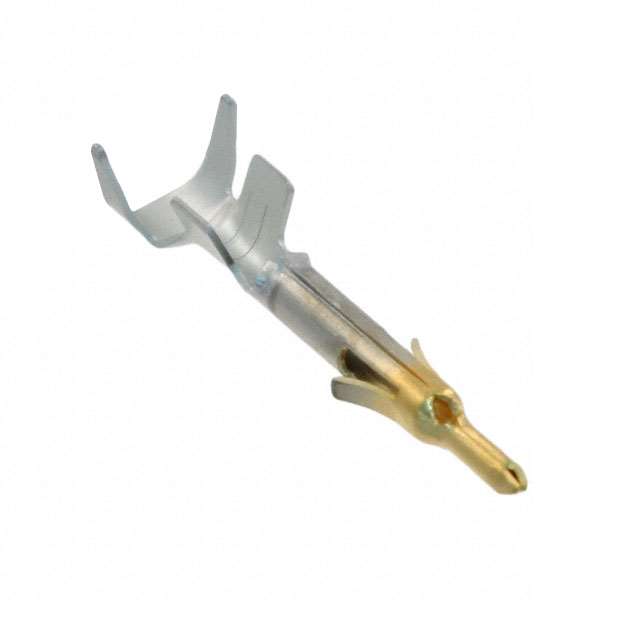

Pin Contact Gold Crimp 16-20 AWG Stamped
