Connectors, Interconnects
794406-1
ActiveTE Connectivity Raychem Cable Protection

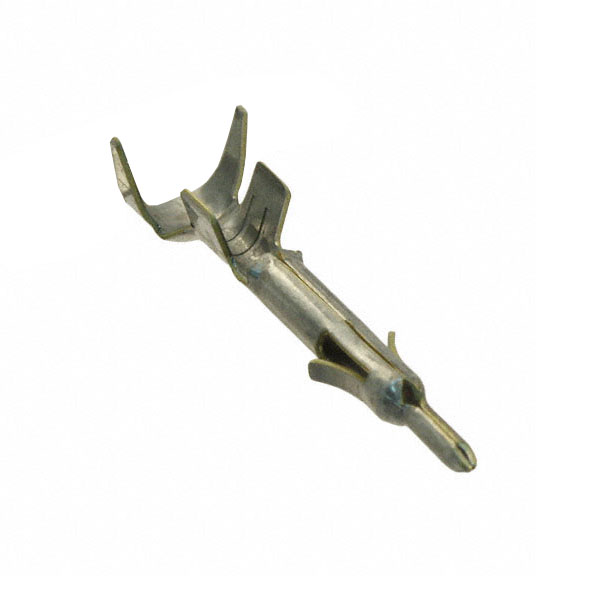

(794406-1) MINI UMNL CONT 20-16AWG SN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
794406-1
ActiveTE Connectivity Raychem Cable Protection
(794406-1) MINI UMNL CONT 20-16AWG SN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 794406-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 4500 | $ 0.08 | ||
| 9000 | $ 0.07 | |||
| 13500 | $ 0.06 | |||
| 31500 | $ 0.06 | |||
| 112500 | $ 0.05 | |||
Description
General part information
794406 Series
Pin Contact Tin Crimp 16-20 AWG Stamped
Documents
Technical documentation and resources
