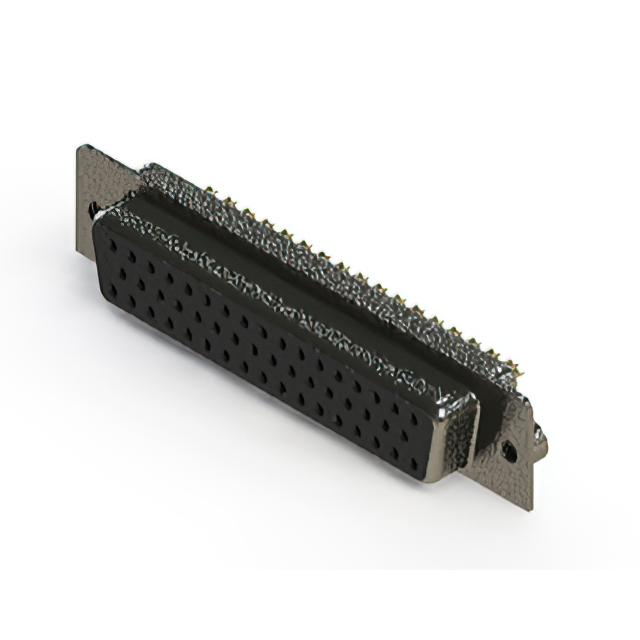

628-M50-222-BN2

Active

EDAC Inc.

628M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-M50-222-BN2

Active

EDAC Inc.

628M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-M50-222-BN2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5

628-M50 Series

...

Part	Connector Style	Contact Finish	Material Flammability Rating	Connector Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Shell Material, Finish	Features	Contact Finish Thickness	Flange Feature	Number of Positions	Contact Material	Shell Size, Connector Layout	Termination	Number of Rows	Contact Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 628-M50-221-GN1	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	Green	Nickel Plated Steel	Shielded	Flash	Housing/Shell (Unthreaded)	50	Copper Alloy	5	Solder	3	Signal and Power	5 A
EDAC Inc. 628-M50-222-BN2	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Free Hanging (In-Line)	Black	Nickel Plated Steel	Shielded	Flash	Housing/Shell (4-40)	50	Copper Alloy	5		3	Signal and Power	5 A
EDAC Inc. 628-M50-321-BT3	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	Black		Shielded		4-40 Board Side	50	Copper Alloy	5	Solder	3	Signal and Power	5 A	15 µin	0.38 µm
EDAC Inc. 628-M50-622-WN1	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Free Hanging (In-Line)	White	Nickel Plated Steel	Shielded		Housing/Shell (Unthreaded)	50	Copper Alloy	5		3	Signal and Power	5 A	30 Áin	0.76 Ám
EDAC Inc. 628-M50-623-WT2	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	White		Shielded		Housing/Shell (4-40)	50	Copper Alloy	5	Solder	3	Signal and Power	5 A	30 Áin	0.76 Ám
EDAC Inc. 628-M50-221-LN2	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	Blue	Nickel Plated Steel	Shielded	Flash	Housing/Shell (4-40)	50	Copper Alloy	5	Solder	3	Signal and Power	5 A
EDAC Inc. 628-M50-321-WN4	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	White	Nickel Plated Steel	Board Lock Shielded		4-40	50	Copper Alloy	5	Solder	3	Signal and Power	5 A	15 µin	0.38 µm
EDAC Inc. 628-M50-223-BN1	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	Black	Nickel Plated Steel	Shielded	Flash	Housing/Shell (Unthreaded)	50	Copper Alloy	5	Solder	3	Signal and Power	5 A
EDAC Inc. 628-M50-321-BN1	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	Black	Nickel Plated Steel	Shielded		Housing/Shell (Unthreaded)	50	Copper Alloy	5	Solder	3	Signal and Power	5 A	15 µin	0.38 µm
EDAC Inc. 628-M50-623-BN5	D-Sub	Gold	UL94 V-0	Receptacle Female Sockets	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Through Hole	Black	Nickel Plated Steel	Board Lock Shielded		4-40 Board Side	50	Copper Alloy	5	Solder	3	Signal and Power	5 A	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.41

Description

General part information

628-M50 Series

50 Position D-Sub Receptacle, Female Sockets Connector
