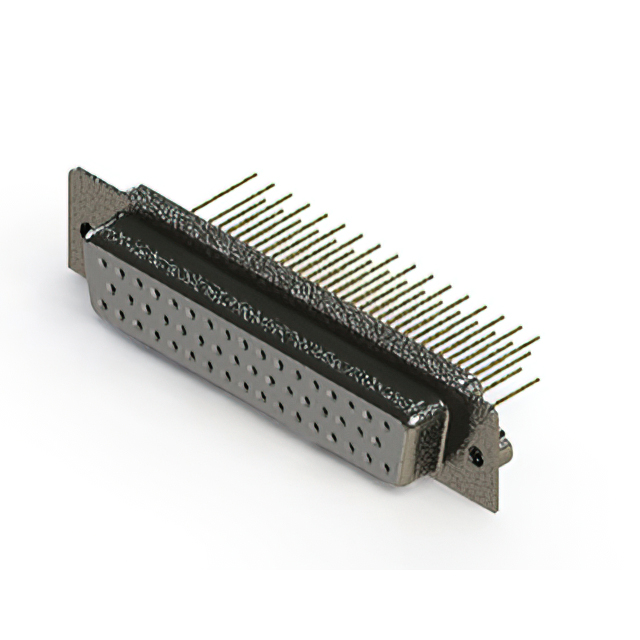

628-M50-623-WT2

Active

EDAC Inc.

CONN D-SUB RCPT 50POS VERT SLDR

628-M50-623-WT2

Active

EDAC Inc.

CONN D-SUB RCPT 50POS VERT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

628-M50 Series

50 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-M50-623-WT2

Color	White
Connector Layout	D, DD
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating (Per Contact)	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded
Finish	Tin Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	5
Termination	Solder

628-M50 Series

...

Part	Connector Style	Termination	Material Flammability Rating	Contact Type	Shell Material	Finish	Connector Type	Features	Shell Size	Connector Layout	Contact Finish Thickness	Current Rating (Per Contact)	Contact Finish	Number of Positions	Number of Rows	Mounting Type	Flange Feature	Contact Material	Dielectric Material	Contact Form	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 628-M50-323-GN4	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Board Lock Shielded	5	D DD	15 µin	5 A	Gold	50	3	Through Hole	Mating Side (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Green	125 °C	-55 °C
EDAC Inc. 628-M50-221-GN1	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Shielded	5	D DD	0	5 A	Gold	50	3	Through Hole	Housing Shell (Unthreaded)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Green	125 °C	-55 °C	Flash	Flash
EDAC Inc. 628-M50-222-BN2	D-Sub	Solder Cup	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Shielded	5	D DD	0	5 A	Gold	50	3	Free Hanging (In-Line)	Housing Shell (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Black	125 °C	-55 °C	Flash	Flash
EDAC Inc. 628-M50-321-BT3	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Tin Plated	Female Sockets Receptacle	Shielded	5	D DD	15 µin	5 A	Gold	50	3	Through Hole	Board Side (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Black	125 °C	-55 °C
EDAC Inc. 628-M50-623-LT4	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Tin Plated	Female Sockets Receptacle	Board Lock Shielded	5	D DD	30 µin	5 A	Gold	50	3	Through Hole	Mating Side (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Blue	125 °C	-55 °C
EDAC Inc. 628-M50-223-GN4	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Board Lock Shielded	5	D DD	0	5 A	Gold	50	3	Through Hole	Mating Side (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Green	125 °C	-55 °C	Flash	Flash
EDAC Inc. 628-M50-622-WN1	D-Sub	Solder Cup	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Shielded	5	D DD	30 µin	5 A	Gold	50	3	Free Hanging (In-Line)	Housing Shell (Unthreaded)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	White	125 °C	-55 °C
EDAC Inc. 628-M50-623-WT2	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Tin Plated	Female Sockets Receptacle	Shielded	5	D DD	30 µin	5 A	Gold	50	3	Through Hole	Housing Shell (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	White	125 °C	-55 °C
EDAC Inc. 628-M50-221-LN2	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Shielded	5	D DD	0	5 A	Gold	50	3	Through Hole	Housing Shell (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	Blue	125 °C	-55 °C	Flash	Flash
EDAC Inc. 628-M50-321-WN4	D-Sub	Solder	UL94 V-0	Power Signal	Steel	Nickel Plated	Female Sockets Receptacle	Board Lock Shielded	5	D DD	15 µin	5 A	Gold	50	3	Through Hole	Mating Side (4-40)	Copper Alloy	Nylon 6T Polyamide (PA6T)	Machined	White	125 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

628-M50-623-WT2 | Datasheet
