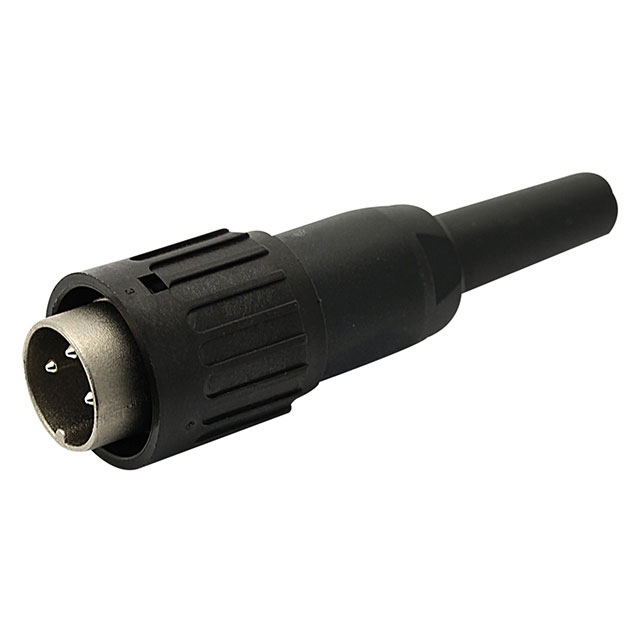

T 3274 518
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
T 3274 518
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3274 518 |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 10 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-3 |
| Voltage Rating | 250 VDC |
T 3274 Series
| Part | Connector Type | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Contact Type | Fastening Type | Type | Mounting Type | Contact Size | Shielding | Shell Size - Insert | Housing Color | Material Flammability Rating | Note | Ingress Protection | Shell Material | Features | Orientation | Color | Contact Finish - Mating | Voltage Rating | Current Rating (Amps) | Shell Finish | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Plug Housing | Thermoplastic | 100 °C | -40 °C | Circular | Crimp | Bayonet Lock | For Male Pins | Free Hanging (In-Line) | 1.5 mm | Unshielded | M16-3 | Black | UL94 V-0 | Contacts Not Included | IP40 | Plastic | Coupling Nut Strain Relief | Keyed | ||||||
Amphenol Tuchel Industrial | Male Pins Plug | 100 °C | -40 °C | Bayonet Lock | Free Hanging (In-Line) | M16-3 | IP40 | Die Cast | Strain Relief | Keyed | Silver | Gold | 250 VDC | 10 A | Nickel | Metal | |||||||||
Amphenol Tuchel Industrial | Plug Housing | Thermoplastic | 100 °C | -40 °C | Circular | Crimp | Bayonet Lock | For Male Pins | Free Hanging (In-Line) | 1.5 mm | Unshielded | M16-3 | Black Silver | UL94 V-0 | Contacts Not Included | IP40 | Die Cast | Backshell Cable Clamp Coupling Nut | Keyed | Nickel | |||||
Amphenol Tuchel Industrial | Male Pins Plug | 100 °C | -40 °C | Bayonet Lock | Free Hanging (In-Line) | M16-3 | IP40 | Plastic | Strain Relief | Keyed | Silver | 250 VDC | 10 A | Plastic | |||||||||||
Amphenol Tuchel Industrial | Plug Housing | Thermoplastic | 100 °C | -40 °C | Circular | Crimp | Bayonet Lock | For Male Pins | Free Hanging (In-Line) | 1.5 mm | Unshielded | M16-3 | Black Silver | UL94 V-0 | Contacts Not Included | IP40 | Die Cast | Cable Clamp Coupling Nut Strain Relief | Keyed | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 9.89 | |
Description
General part information
T 3274 Series
3 Position Circular Connector Plug, Male Pins Solder Cup
