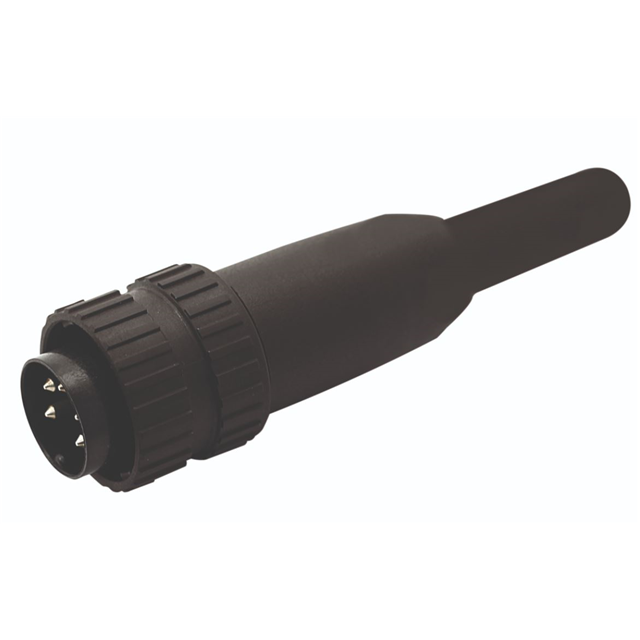

T 3274 951

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 3POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3274 951

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Strain Relief, Coupling Nut
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-3
Shielding	Unshielded
Type	For Male Pins

Part	Connector Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Type	Fastening Type	Type	Mounting Type	Contact Size	Shielding	Shell Size - Insert	Housing Color	Material Flammability Rating	Note	Ingress Protection	Shell Material	Features	Orientation	Color	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Shell Finish	Primary Material
Amphenol Tuchel Industrial T 3274 951	Plug Housing	Thermoplastic	100 °C	-40 °C	Circular	Crimp	Bayonet Lock	For Male Pins	Free Hanging (In-Line)	1.5 mm	Unshielded	M16-3	Black	UL94 V-0	Contacts Not Included	IP40	Plastic	Coupling Nut Strain Relief	Keyed
Amphenol Tuchel Industrial T 3274 518	Male Pins Plug		100 °C	-40 °C			Bayonet Lock		Free Hanging (In-Line)			M16-3				IP40	Die Cast	Strain Relief	Keyed	Silver	Gold	250 VDC	10 A	Nickel	Metal
Amphenol Tuchel Industrial T 3274 552	Plug Housing	Thermoplastic	100 °C	-40 °C	Circular	Crimp	Bayonet Lock	For Male Pins	Free Hanging (In-Line)	1.5 mm	Unshielded	M16-3	Black Silver	UL94 V-0	Contacts Not Included	IP40	Die Cast	Backshell Cable Clamp Coupling Nut	Keyed					Nickel
Amphenol Tuchel Industrial T 3274 991	Male Pins Plug		100 °C	-40 °C			Bayonet Lock		Free Hanging (In-Line)			M16-3				IP40	Plastic	Strain Relief	Keyed		Silver	250 VDC	10 A		Plastic
Amphenol Tuchel Industrial T 3274 551	Plug Housing	Thermoplastic	100 °C	-40 °C	Circular	Crimp	Bayonet Lock	For Male Pins	Free Hanging (In-Line)	1.5 mm	Unshielded	M16-3	Black Silver	UL94 V-0	Contacts Not Included	IP40	Die Cast	Cable Clamp Coupling Nut Strain Relief	Keyed					Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 5.27

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Strain Relief
