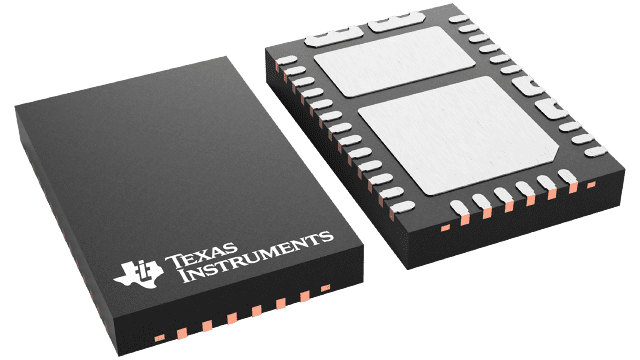

TPS25750DRJKR
ActiveHIGHLY INTEGRATED USB TYPE-C® AND USB POWER DELIVERY CONTROLLER WITH PRE-CONFIGURED GUI
Deep-Dive with AI
Search across all available documentation for this part.
TPS25750DRJKR
ActiveHIGHLY INTEGRATED USB TYPE-C® AND USB POWER DELIVERY CONTROLLER WITH PRE-CONFIGURED GUI
Deep-Dive with AI
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.94 | |
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.84 | |||
| 1000 | $ 1.56 | |||
| Digi-Reel® | 1 | $ 2.94 | ||
| 10 | $ 2.64 | |||
| 25 | $ 2.50 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.84 | |||
| 1000 | $ 1.56 | |||
| Tape & Reel (TR) | 3000 | $ 1.48 | ||
| 6000 | $ 1.42 | |||
| Texas Instruments | LARGE T&R | 1 | $ 2.78 | |
| 100 | $ 2.30 | |||
| 250 | $ 1.65 | |||
| 1000 | $ 1.24 | |||
Description
General part information
TPS25750 Series
The TPS25750 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for applications supporting USB-C PD Power. The TPS25750 integrates fully managed power paths with robust protection for a complete USB-C PD solution. The TPS25750 also integrates control for external battery charger ICs for added ease of use and reduced time to market. The intuitive web based GUI will ask the user a few simple questions on the applications needs using clear block diagrams and simple multiple-choice questions. As a result, the GUI will create the configuration image for the user’s application, reducing much of the complexity associated with competitive USB PD solutions.
The TPS25750 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for applications supporting USB-C PD Power. The TPS25750 integrates fully managed power paths with robust protection for a complete USB-C PD solution. The TPS25750 also integrates control for external battery charger ICs for added ease of use and reduced time to market. The intuitive web based GUI will ask the user a few simple questions on the applications needs using clear block diagrams and simple multiple-choice questions. As a result, the GUI will create the configuration image for the user’s application, reducing much of the complexity associated with competitive USB PD solutions.
Documents
Technical documentation and resources
